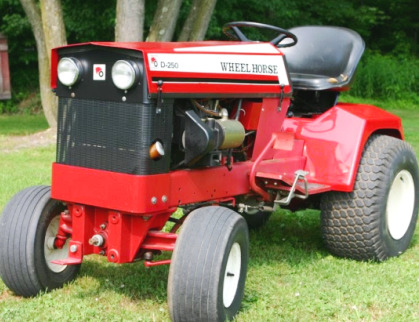

Wheel Horse D250 Garden Tractor
The
Wheel Horse D250 is a D-series garden tractor. This model was manufactured by
Gutbrod built from 1976 to 1981. The Wheel Horse D250 driveline consists of a
52.1 cu.in (853 cc) Renault 800-01 4-cycle 4-cylinder liquid-cooled gasoline
engine and Gutbrod mechanical transmission with 8 forward and 2 reverse gears.
The engine has a cylinder bore of 2.29" (58 mm), piston stroke of 3.16"
(80 mm), and maximum power of 19.9 hp (14.8 kW). Max. travel speed
(forward/reverse): 10.6 mph (17.1 km/h) and 3.6 mph (5.8 km/h).
The Wheel Horse D250 was equipped with a manual steering system,
mechanical drum brakes, 18x8.50-8 front tires, and 26x12.00-12 rear
tires. The wheel base is 55" (1390 mm). The garden tractor is compatible
with a 60" mid-mount 3-blade mower deck with cutting height of 1.5-4.0"
(38-102 mm) and mechanical lift system, 48" front-mount snowblower, and
59" front-mount blade.
| Engine Model |
Renault 800-01 |
| Engine Type |
4-cycle four cylinder liquid-cooled gasoline |
| Number of Cylinders |
4 |
| Displacement, cu.in (cc) |
52.1 (853) |
| Engine Bore, in (mm) |
2.29 (58.0) |
| Engine Stroke, in (mm) |
3.16 (80.0) |
| Maximum Engine Power, hp (kW) |
19.9 (14.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1000-3200 |
| Compression Ratio |
8:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Carburetor |
| Governor |
Centrifugal type |
| Lubrication System |
Forced-feed from gear pump |
| Air Cleaner |
Oil bath |
| Ignition System |
Electrical |
| Spark Plug |
Champion L87Y |
| Spark Plug Gap, in (mm) |
0.020 (0.51) |
| Fuel Tank Capacity, gal (L) |
3.7 (14.0) |
| Oil Capacity, qts (L) |
2.6 (2.5) |
| Electrical System Rating, Volts |
12 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery, AH |
18 |
| Electric Ground |
Negative |
| Transmission Model |
Gutbrod |
| Transmission Type |
Gear |
| Gearbox Type |
8F/2R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
10.6 (17.1) |
| Maximum Reverse Speed, mph (kph) |
3.6 (5.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Drum |
| Front Tire Size |
18x8.50-8 |
| Rear Tire Size |
26x12.00-12 |
| Wheelbase, in (mm) |
55 (1390) |
| Length, in (mm) |
78 (1980) |
| Height, in (mm) |
45 (1140) |
| Overall Width, in (mm) |
44 (1110) |
| Weight, lb (kg) |
1160 (526) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
48 (1215) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
59 (1490) |
| Lift System |
Mechanical |
| Angle |
Manual |
