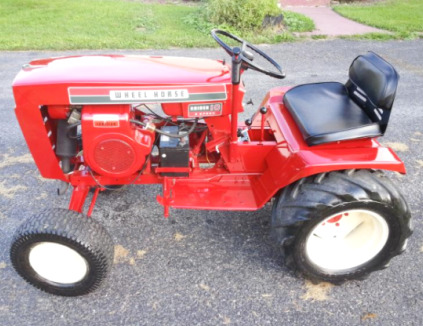

Wheel Horse Raider 10 Tractor
The
Wheel Horse Raider 10 garden tractor was manufactured between 1970 and 1975. The
Wheel Horse Raider 10 tractor is powered by 23.7 cu.in (388 cc) Tecumseh HH100
4-cycle single cylinder horizontal-shaft air-cooled gasoline engine with a max
power of 10 hp (7.5 kW), or 23.9 cu.in (391 cc) Kohler K241S 4-cycle single
cylinder air-cooled gasoline engine with a max power of 10 hp (7.5 kW).
The Wheel Horse Raider 10 is fitted with two types of transmission. 1st
type: Wheel Horse 5071 belt-driven gear transmission with 3 forward and
1 reverse gears. 2nd type: Wheel Horse 5073 belt-driven gear
transmission with 6 forward and 2 reverse gears. The maximum travel
speed (forward/reverse): 6 mph (9.6 km/h) and 2.8 mph (4.5 km/h).
The tractor is equipped with 16x5.50-8 front tyres and 23x8.50-12 rear
tyres. The wheel base is 45.5" (1150 mm). Compatible attachments for the
Wheel Horse Raider 10: 36", 42", or 48" mid-mount 3-blade mower deck
with cutting height of 1.5-4.0" (38-102 mm) and manual lift system, 37"
front-mount snowblower, and 42" front-mount blade.
| Engine Model |
Tecumseh HH100 |
| Engine Type |
4-cycle single cylinder horizontal-shaft air-cooled gasoline |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
23.7 (388) |
| Engine Bore, in (mm) |
3.31 (84.0) |
| Engine Stroke, in (mm) |
2.75 (70.0) |
| Maximum Engine Power, hp (kW) |
10.0 (7.5) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1600 |
| Fuel System |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump |
Impulse type |
| Governor |
Centrifugal flyball type |
| Lubrication System |
Splash type |
| Air Cleaner |
Dry element |
| Ignition System |
Flywheel magneto |
| Spark Plug Gap, in (mm) |
0.028-0.033 (0.711-0.838) |
| Magneto Air Gap, in (mm) |
0.006-0.010 (0.152-0.254) |
| Intake Valve Clearance, in (mm) |
0.010 (0.25) |
| Exhaust Valve Clearance, in (mm) |
0.020 (0.51) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.6) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Engine Model |
Kohler K241S |
| Engine Type |
4-Cycle, one cylinder air-cooled gasoline |
| Number of Cylinders |
Single |
| Displacement, cu.in (L) |
23.9 (0.391) |
| Engine Bore, in (mm) |
3.25 (82.5) |
| Engine Stroke, in (mm) |
2.88 (73.0) |
| Maximum Horse Power, Hp (kW) |
10.0 (7.5) |
| Rated Engine Speed, rpm |
3600 |
| Fuel System |
Carburetor |
| Carburetor Model |
Kohler/Walbro |
| Carburetor Type |
Fixed main jet or adjustable main jet |
| Lubrication System |
Splash type |
| Cooling System |
Forced-air |
| Valve Clearance (Intake), in (mm) |
0.0079-0.0099 (0.20-0.25) |
| Valve Clearance (Exhaust), in (mm) |
0.0169-0.0189 (0.43-0.48) |
| Spark Plug Type |
Champion RH10 |
| Spark Plug Size, in (mm) |
0.553 (14.0) |
| Spark Plug Gap, in (mm) |
0.0256 (0.65) |
| Breaker Point Gap (Nominal), in (mm) |
0.020 (0.50) |
| Fuel Tank Capacity, gal (L) |
2.0 (7.6) |
| Oil Capacity, qt (L) |
2.02 (1.90) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Electric Ground |
Negative |
| Transmission Model |
Wheel Horse 5071 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
3F/1R |
| Number of Forward Gears |
3 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
6.0 (9.6) |
| Maximum Reverse Speed, mph (kph) |
2.5 (4.1) |
| Transmission Model |
Wheel Horse 5073 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Oil Capacity, qts, (L) |
2.0 (1.9) |
| Maximum Forward Speed, mph (kph) |
6.0 (9.6) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Front Tire Size |
16x5.50-8 |
| Rear Tire Size |
23x8.50-12 |
| Wheelbase, in (mm) |
45.5 (1150) |
| Length, in (mm) |
65 (1650) |
| Height (Hood), in (mm) |
35 (880) |
| Height (Steering Wheel), in (mm) |
39 (990) |
| Overall Width, in (mm) |
37 (935) |
| Ground Clearance, in (mm) |
7.3 (180) |
| Weight, lb (kg) |
570 (258) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
36 (910) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
42 (1060) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1210) |
| Cutting Height, in (mm) |
1.5-4.0 (38-102) |
| Deck Drive |
Belt |
| Lift System |
Mechanical |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
37 (930) |
| Lift System |
Mechanical |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Angle |
Manual |
