Craftsman LT1000 Lawn Tractor
The

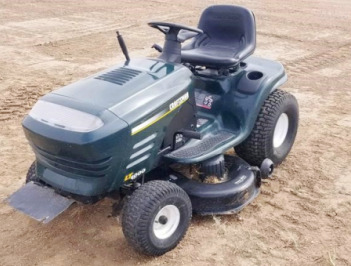

Craftsman LT1000 lawn tractor was manufactured by AYP built between 2001 and
2004. The tractor can be equipped with the following models of gasoline engines:
Briggs and Stratton 311707 Intek engine with a rated power of 19 hp (14.1 kW),
Briggs and Stratton 31C707 engine with a rated power of 17.5 hp (13 kW), Kohler
Command CV461 engine with a rated power of 16 hp (11.9 kW), or Kohler Command
CV490 engine with a rated power of 17 hp (12.7 kW).
The lawn tractor is fitted with a three types of transmission. Type 1:
Hydro-Gear 322-0510 belt-driven hydrostatic transmission. Type 2:
6-speed Dana D4360 belt-driven gear transmission. Type 3: 6-speed
Peerless 206-545 belt-driven gear transmission. The maximum forward
speed - 5.4 mph (8.7 km/h), maximum reverse speed - 2.7 mph (4.3 km/h).
The Craftsman LT1000 tractor is equipped with a manual steering, disc
brakes, 15x6.00-6 front tires, and 18x9.50-8 rear tires. Compatible
attachments for the tractor: a 42" mid-mount 2-blade mower deck with
mechanical lift system, a 42" front blade, and 40" front-mount two-stage
snow blower with a mechanical lift system.
| Engine Model |
Briggs and Stratton 311707 Intek |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
30.59 (501) |
| Cylinder Bore, in (mm) |
3.56 (91.0) |
| Piston Stroke, in (mm) |
3.06 (77.7) |
| Rated Engine Power, hp (kW) |
16.5 (12.3) |
| Rated Engine Speed, rpm |
3300 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Cylinder Bore Type |
Cast iron sleeve |
| Lubrication System |
Full pressure/Oil slinger |
| Air Cleaner |
Paper filter with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
1.51 (1.42) |
| Engine Model |
Briggs and Stratton 31C707 |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
30.5 (500) |
| Cylinder Bore, in (mm) |
3.56 (91.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
17.5 (13.0) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1750 |
| Compression Ratio |
8.5:1 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Governor Type |
Mechanical |
| Lubrication System |
Splash |
| Air Cleaner |
Dual element |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Valve Clearance (Intake), in (mm) |
0.003-0.005 (0.08-0.13) |
| Valve Clearance (Exhaust), in (mm) |
0.005-0.007 (0.13-0.18) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
1.51 (1.42) |
| Engine Model |
Kohler Command CV461 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline engine |
| Number of Cylinder |
1 |
| Piston Displacement, cu.in (cc) |
27.91 (457) |
| Engine Bore, in (mm) |
3.43 (87.0) |
| Engine Stroke, in (mm) |
3.03 (77.0) |
| Engine Power, Hp (kW) |
16.0 (11.9) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lb) |
36.3 (26.8) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Diaphragm type, mechanical |
| Fuel Filter |
In-line |
| Governor |
Centrifugal Mechanical Flyweight |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Engine Model |
Kohler Command CV490 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline engine |
| Number of Cylinder |
1 |
| Piston Displacement, cu.in (cc) |
29.9 (490) |
| Engine Bore, in (mm) |
3.60 (90.0) |
| Engine Stroke, in (mm) |
3.03 (77.0) |
| Engine Power, Hp (kW) |
17.0 (12.7) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lb) |
37.8 (27.9) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Diaphragm type, mechanical |
| Fuel Filter |
In-line |
| Governor |
Centrifugal Mechanical Flyweight |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.040 (1.02) |
| Fuel Tank Capacity, gal (L) |
1.3 (4.8) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery, AH |
28/30 |
| Battery, CCA |
230/240 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Manual |
| PTO Speed, rpm |
2200 |
| Transmission Model |
Hydro-Gear 322-0510 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.7 (4.3) |
| Transmission Model |
Dana D4360 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.4 (8.7) |
| Maximum Reverse Speed, mph (kph) |
1.7 (2.7) |
| Transmission Model |
Peerless 206-545 |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
4.9 (7.9) |
| Maximum Reverse Speed, mph (kph) |
1.4 (2.3) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x9.50-8 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
52 (1300) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
