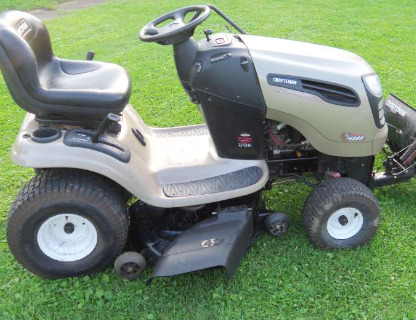

Craftsman YS 4500 Lawn Tractor
The
Craftsman YS 4500 lawn tractor was manufactured from 2006 to 2008. The Craftsman
YS4500 tractor is powered by Briggs and Stratton 331877 Intek single cylinder
gasoline engine with a rated power of 21 Hp (15.3 kW), Briggs and Stratton
441777 V-twin cylinder gasoline engine with a rated power of 22 Hp (16.2 kW),
Briggs and Stratton 31P977 single cylinder gasoline engine with a rated power of
20 Hp (14.9 kW), or Kohler Courage SV600 single cylinder gasoline engine with a
rated power of 20 Hp (14.9 kW).
The Craftsman YS 4500 is fitted with three types of transmission. Type
1: Dana D6800 mechanical transmission with 6 forward and 1 reverse
gears. Type 2: Tuff Torq K46 belt-driven hydrostatic transmission with
foot-controlled variable speed drive. Type 3: Hydro Gear 351-0510
hydrostatic transmission with infinite forward and reverse gears. The
maximum forward speed - 5.5 mph (8.8 km/h), max. reverse speed - 2.4 mph
(3.9 km/h).
The Craftsman YS4500 was equipped with a sector and pinion type
steering, disc brakes, 15x6.00-6 front tires, and 20x8.00-8 or 18x9.50-8
rear tires. The tractor is compatible with 42" or 46" mid-mount 2-blade
mower decks with cutting height of 1.0-4.0 in (25-100 mm), six cut
positions, and mechanical lifting system.
| Engine Model |
Briggs and Stratton 331877 Intek |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
32.95 (540) |
| Cylinder Bore, in (mm) |
3.70 (94.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
21.0 (15.3) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Cylinder Bore Type |
Cast iron sleeve |
| Lubrication System |
Full pressure |
| Air Cleaner |
Paper filter with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
1.48 (1.40) |
| Engine Model |
Briggs and Stratton 441777 |
| Engine Type |
4-cycle V-twin OHV vertical-shaft air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.2 (724) |
| Cylinder Bore, in (mm) |
3.12 (79.0) |
| Piston Stroke, in (mm) |
2.89 (73.0) |
| Rated Engine Power, hp (kW) |
22.0 (16.2) |
| Rated Engine Speed, rpm |
3300 |
| Idle Speed, rpm |
1750 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure |
| Air Cleaner |
Paper cartridge with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Magneto Air Gap, in (mm) |
0.008-0.012 (0.20-0.30) |
| Valve Clearance (Intake), in (mm) |
0.004-0.006 (0.10-0.15) |
| Valve Clearance (Exhaust), in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
3.0 (11.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Engine Model |
Briggs and Stratton 31P977 |
| Engine Type |
4-cycle single cylinder OHV vertical shaft air-cooled gasoline engine |
| Number of Cylinders |
1 |
| Displacement, cu.in (cc) |
30.6 (501) |
| Cylinder Bore, in (mm) |
3.56 (91.0) |
| Piston Stroke, in (mm) |
3.06 (78.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.9) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1750 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float |
| Fuel Pump |
Pulse type |
| Governor Type |
Mechanical |
| Cylinder Bore Type |
Cast iron sleeve |
| Lubrication System |
Full pressure |
| Air Cleaner |
Paper cartridge |
| Cooling System |
Forced air |
| Ignition System |
Electronic |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Armature Air Gap, in (mm) |
0.010-0.014 (0.25-0.36) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
1.51 (1.42) |
| Engine Model |
Kohler Courage SV600 |
| Engine Type |
4-cycle single cylinder air-cooled gasoline engine |
| Number of Cylinder |
1 |
| Piston Displacement, cu.in (cc) |
36.4 (597) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
3.38 (86.0) |
| Engine Power, Hp (kW) |
20.0 (14.9) |
| Rated Engine Speed, rpm |
3600 |
| Low Idle Speed, rpm |
1400-1600 |
| Compression Ratio |
8.5:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Fuel Filter |
In-line |
| Governor Type |
Mechanical |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Module Air Gap, in (mm) |
0.008-0.012 (0.20-0.31) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
1.6 (1.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Dana D6800 |
| Transmission Type |
Gear |
| Gearbox Type |
6F/1R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
1 |
| Maximum Forward Speed, mph (kph) |
5.3 (8.5) |
| Maximum Reverse Speed, mph (kph) |
1.5 (2.4) |
| Transmission Model |
Tuff Torq K46 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Reduction Ratio |
21.53:1 |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Transaxle Capacity, qts (L) |
2.8 (2.6) |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.9) |
| Optional Transmission (TWO) |
| Transmission Model |
Hydro Gear 351-0510 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.9) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual sector and pinion |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x8.00-8 |
| Rear Tire Size |
18x9.50-8 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
42 (1060) |
| Overall Width, in (mm) |
52 (1300) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Width, in (mm) |
46 (1160) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
