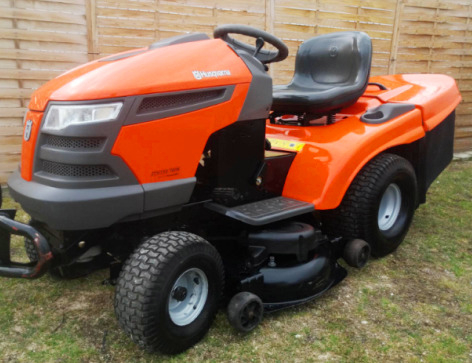

Husqvarna CTH150 Lawn Tractor
The
Husqvarna CTH 150 lawn tractor was manufactured between 2003 and 2008. The
Husqvarna CTH150 driveline components: a 26.3 cu.in (431 cc) Kawasaki FH430V
4-cycle vertical-shaft V-twin cylinder air-cooled gasoline engine and Hydro-Gear
321-0510 belt-driven hydrostatic transmission with infinite forward and reverse
gears.
The engine has a cylinder bore of 2.56" (65 mm), piston stroke of 2.56"
(65 mm), rated power of 15 hp (11.2 kW), and max torque of 32 Nm (23.6
lb-ft) at 2400 rpm. The maximum forward speed - 5.5 mph (8.8 kph),
maximum reverse speed - 2.4 mph (3.8 kph). The tractor is equipped with
a manual steering system, disc brakes, 15x6.00-6 front tires, and
20x10.00-8 rear tires. The wheel base is 46.9" (1190 mm).
The Husqvarna CTH150 is compatible with a 42" mid-mount 2-blade mower
deck with cutting height of 1.5-4.0 in (37-100 mm), 6 cut positions, 2
anti-scalp wheels, and mechanical lifting system.
| Engine Model |
Kawasaki FH430V |
| Engine Type |
4-cycle vertical-shaft V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
26.3 (431) |
| Engine Bore, in (mm) |
2.56 (65.0) |
| Engine Stroke, in (mm) |
2.56 (65.0) |
| Maximum Engine Power, hp (kW) |
15.0 (11.2) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1450-1650 |
| Maximum Torque, Nm (ft-lbs) |
32 (23.6) |
| Torque Speed, rpm |
2400 |
| Compression Ratio |
8.5:1 |
| Fuel System |
Carburetor |
| Carburetor Type |
Float type with fixed main jet |
| Lubrication System |
Full pressure with spin-on oil filter |
| Ignition System |
Flywheel magneto transistor type |
| Spark Plug |
Champion RCJ8Y or NGK BPMR6A |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
2.5 (9.5) |
| Oil Capacity, qts (L) |
1.7 (1.8) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
13 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery, AH |
28 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Mechanical |
| PTO Speed, rpm |
3600 |
| Transmission Model |
Hydro-Gear 321-0510 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Disc |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
20x10.0-8 |
| Wheelbase, in (mm) |
46.9 (1190) |
| Length, in (mm) |
98 (2500) |
| Height, in (mm) |
44.1 (1120) |
| Overall Width, in (mm) |
39.8 (1010) |
| Ground Clearance, in (mm) |
6 (150) |
| Weight, lb (kg) |
485 (219) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
2 |
| Cutting Deck Type |
Stamped |
| Cutting Width, in (mm) |
42 (1065) |
| Cutting Height, in (mm) |
1.5-4.0 (37-100) |
| Cut positions |
6 |
| Anti-Scalp Wheels |
2 |
| Lift System |
Mechanical |
