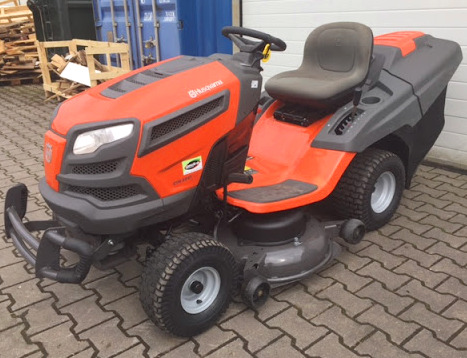

Husqvarna CTH224T Lawn Tractor
The
Husqvarna CTH224T lawn tractor was manufactured between 2012 and 2014. The
Husqvarna CTH 224T driveline components: a 44.3 cu.in (726 cc) Kawasaki FS651V
4-cycle vertical-shaft OHV V-twin cylinder air-cooled gasoline engine and Tuff
Torq K46 DF hydrostatic transmission with automatic differential lock and
foot-controlled variable speed drive.
The engine has a cylinder bore of 3.07"
(78 mm), piston stroke of 3" (76 mm), rated power of 22 hp (16.3 kW), and max
torque of 53.2 Nm (39.2 lb-ft) at 1800 rpm. Max. forward speed - 5.3 mph (8.5
km/h), maximum reverse speed - 2.4 mph (3.8 km/h). The
tractor is equipped with a manual steering system, pneumatic wheels, 15x6.00-6
front tires, and 18x9.50-8 rear tires. The wheelbase is 47" (1200 mm).
The
Husqvarna CTH224T is compatible with a 42" mid-mount 2-blade side discharge
mower deck with cutting height of 1.5-4.0 in (38-101 mm), 6 cut positions, 4
anti-acalp wheels, electric blade engagement, and mechanical lift system.
| Engine Model |
Kawasaki FS651V |
| Engine Type |
4-cycle vertical-shaft OHV V-twin air-cooled gasoline |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
44.3 (726) |
| Engine Bore, in (mm) |
3.07 (78.0) |
| Engine Stroke, in (mm) |
3.00 (76.0) |
| Maximum Engine Power, hp (kW) |
22.0 (16.3) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1400-1600 |
| Maximum Torque, Nm (ft-lbs) |
53.2 (39.2) |
| Torque Speed, rpm |
1800 |
| Cylinder Liners |
Cast iron |
| Compression Ratio |
8.2:1 |
| Fuel System |
Carburetor |
| Carburetor Type |
Internally vented with fuel shut-off solenoid |
| Lubrication System |
Pressure feed by positive displacement pump |
| Oil Filter Type |
Full flow cartridge |
| Ignition System |
Electronic spark ignition |
| Spark Plug |
NGK BPR4ES |
| Spark Plug Gap, in (mm) |
0.027-0.031 (0.7-0.8) |
| Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.5) |
| Oil Capacity, qts (L) |
1.9 (1.8) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Volts |
20A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K46 DF |
| Transmission Type |
Hydrostatic with automatic differential lock |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Cruise Control |
Standard |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.3 (8.5) |
| Maximum Reverse Speed, mph (kph) |
2.4 (3.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x9.50-8 |
| Wheelbase, in (mm) |
47 (1200) |
| Length, in (mm) |
99.2 (2520) |
| Height, in (mm) |
43.7 (1110) |
| Overall Width, in (mm) |
44 (1120) |
| Turning Radius, in (mm) |
16 (405) |
| Weight, lb (kg) |
565 (257) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped |
| Mower Deck Material |
Steel |
| Cutting Methods |
Side discharge |
| Number of Blades |
2 |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
42 (1070) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Cut Positions |
6 |
| Anti-Scalp Wheels |
4 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
