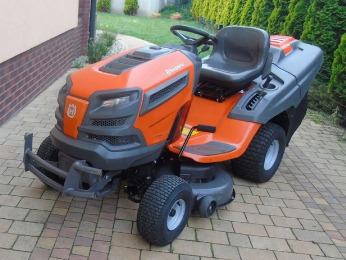

Husqvarna TC338 Garden Tractor
The
Husqvarna TC 338 2WD garden tractor was manufactured between 2014 and 2018. The
Husqvarna TC338 driveline consists of Briggs and Stratton 40S777 -cycle V-twin
cylinder OHV air-cooled gasoline engine and Tuff Torq K46 DF belt-driven
hydrostatic transmission with infinite forward and reverse gears.
A 40.1 cubic inches (656 cc) engine has a cylinder bore of 2.97" (75
mm), piston stroke of 2.89" (73 mm), and rated power of 20 hp (14.8 kW).
The fuel system has a float-feed fixed main jet carburetor and integral
type fuel pump. The maximum forward speed - 5 mph (8 kph), maximum
reverse speed - 2.2 mph (3.5 kph).
The Husqvarna TC 338 lawn tractor is equipped with a manual steering
system, pneumatic wheels, 15x6.00-6 front tires, and 18x9.50-8 rear
tires. Compatible attachments for the tractor: 38" mid-mount 2-blade
side discharge mower deck with cutting height of 1.5-4.0 in (38-101 mm),
electric blade engagement, 6 cut positions, and mechanical lift system
with hand operated.
| Engine Model |
Briggs and Stratton 40S777 |
| Engine Type |
4-cycle V-twin cylinder OHV air-cooled gasoline engine |
| Number of Cylinders |
2 |
| Displacement, cu.in (cc) |
40.1 (656) |
| Cylinder Bore, in (mm) |
2.97 (75.0) |
| Piston Stroke, in (mm) |
2.89 (73.0) |
| Rated Engine Power, hp (kW) |
20.0 (14.8) |
| Rated Engine Speed, rpm |
3600 |
| Idle Speed, rpm |
1600 |
| Cylinder Bore Type |
Cast iron sleeve |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Float-feed |
| Fuel Pump Type |
Integral |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure with spin-on oil filter |
| Air Cleaner |
Paper cartridge with a foam pre-cleaner |
| Cooling System |
Forced air |
| Ignition System |
Magnetron, Electronic |
| Spark Plug Type |
Champion QC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.5) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System Rating, Amps |
16 |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery, CCA |
230 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3000 |
| Transmission Model |
Tuff Torq K46 DF |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Drive Train |
Transaxle with foot-controlled variable speed drive |
| Cruise Control |
Standard |
| Axle Shaft Size, in (mm) |
0.75 (19.1) |
| Maximum Forward Speed, mph (kph) |
5.0 (8.0) |
| Maximum Reverse Speed, mph (kph) |
2.2 (3.5) |
| Drive Wheels |
2WD 4x2 |
| Front Axle |
Cast-iron |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Tire Type |
Pneumatic wheels |
| Front Tire Size |
15x6.00-6 |
| Rear Tire Size |
18x9.50-8 |
| Wheelbase, in (mm) |
46.8 (1190) |
| Length, in (mm) |
99.2 (2520) |
| Height, in (mm) |
43.7 (1110) |
| Overall Width, in (mm) |
44 (1120) |
| Turning Radius, in (mm) |
16 (407) |
| Weight, lb (kg) |
461 (255) |
| Mower Deck Type |
Mid-mount |
| Mower Deck Construction |
Stamped |
| Mower Deck Material |
Steel |
| Cutting Methods |
Side discharge |
| Number of Blades |
2 |
| Blade Engagement |
Electric |
| Cutting Width, in (mm) |
38 (970) |
| Cutting Height, in (mm) |
1.5-4.0 (38-101) |
| Spindle Material |
Aluminum |
| Cut Positions |
6 |
| Deck Drive |
Belt |
| Lift System |
Mechanical, hand operated |
