John Deere E100 Troubleshooting
The

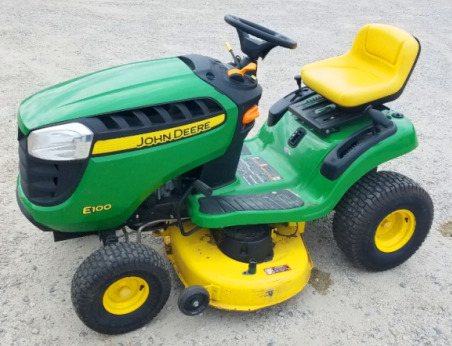

John Deere E100 lawn tractor was manufactured between 2018 and 2020. The
components of John Deere E100 powerline system: a 30.5 cu.in (500 cc) Briggs and
Stratton 31R977 Intek 4-cycle single cylinder OHV vertical shaft air-cooled
gasoline engine and 5 variator range RT400 belt-driven continuously variable
transmission with infinite forward and reverse gears.
The engine has a cylinder bore of 3.56" (91 mm), piston stroke of 3.06"
(78 mm), and rated power of 17.5 hp (13 kW). Max travel speed
(forward/reverse): 5.5 mph (8.8 kph) and 3.2 mph (5.1 kph).
The John Deere E100 is equipped with a manual steering system, cone
clutch brakes, 15x6.00-6 front tires, and 20x8.00-8 rear tires. The
wheel base is 49" (1240 mm). The tractor is compatible with a 42"
mid-mount 2-blade mower deck with cutting height of 1.0-4.0" (25-102
mm), 13 cut positions, and mechanical lift system, 46" front blade, and
44" front-mount two-stage snow blower.
| Engine Troubleshooting |
| Engine difficult to start or won't start |
| Gas tank is empty - Fill it up |
| Low-quality gasoline - Use correct fuel grade |
| Air in fuel system - Bleed fuel system |
| Spark plug wire connection are damaged - Inspect the spark plug wire connection, replace or repair |
| Defective spark plug - Spark plug need to be replaced |
| Dirty fuel filter - Install new filter |
| Safety contact for brake pedal defective - Install new part |
| Carburetor is dirty - Wash, clean and adjust |
| Engine has bad compression - Check cylinder block and change wear parts |
| Choke cable is unadjusted or damaged - Replace cable or adjust properly |
| Engine runs intermittently |
| Air intake grill is clogged - Need to wash or clean |
| Ignition failure - Inspect ignition system and change faulty parts |
| Throttle cable is faulty or stuck - Change or clean the cable |
| Air filter is blocked - Clean or change air filter |
| Fuel pump is clogged or faulty - Service or change fuel pump |
| Engine stalls after starting |
| Spark plug is damaged - Spark plug need to be replaced |
| Carburetor is clogged or faulty - Service or replace carburetor |
| Damaged ignition coil - Install a new ignition coil |
| Worn or loose valve springs - Change valve springs |
| Valves sticking - Valves need to be cleaned |
| Low engine oil level - Fill the crankcase with engine oil |
| Engine is overloaded - Reduce the load |
| Cooling fins are plugged - Clean and wash as required |
| Carburetor mixture is too lean - Use proper settings |
| Ignition timing is improper - Adjust ignition timing as required |
| Valve setting is improper - Adjust valves as required |
| Abnormal engine knocking or noise |
| Stale or low octane fuel - Use correct fuel |
| Engine overloaded - Load reducing required |
| Engine oil level low - Fill the crankcase with engine oil |
| Low idle speed setting is not correct - Correct the settings |
| Dirty or defective fuel pump - Clean or change fuel pump |
| Main bearings or crankshaft wear - Install new parts as as required |
| Improper valve clearance - Adjust to proper valve clearance |
| Cylinder bore or piston rings are damaged - Replace faulty parts |
| Clogged or incorrectly adjusted carburetor - Adjust the carburetor correctly or clean it |
| Air filter is dirty - Clean or replace air filter |
| Dirty or defective fuel pump - Clean or replace fuel pump |
| Defective ignition system - Inspect ignition system and change faulty parts |
| Worn cylinder head gasket - Install new cylinder head gasket |
| Valves are stuck or burned - Change or clean valves |
| Damaged or worn push rod - Change push rod |
| Cylinder block components are damaged - Defective parts need to be replaced |
| Choke doesn't open well - Adjust or replace choke cable |
| Carburetor main jet is incorrectly adjusted - Adjust the carburetor main jet properly |
| Loose or faulty spark plug - Tighten or change the spark plug |
| Valves are stuck, burned, or worn - Clean or replace valves |
| Worn rings, piston, or sleeve - Replace defective parts as required |
| Valve clearance is not correct - Need to adjust valve clearance |
| Defective seals or gaskets - Install new components |
| Damaged valve guides or valve stems - Valves must be replaced |
| Seized or wear piston rings - Change the piston rings as required |
| Scuffed cylinder liner or piston - Inspect liner and piston, fit new parts as necessary |
| Plugged breather hose or pipe - Clean or change |
| Automatic Transmission Troubleshooting |
| CVT transmission makes excessive noise |
| Speed control linkage is worn or unadjusted - Adjust or change linkage |
| Transmission is under excessive load - Reduce the load is required |
| Transmission fluid is dirty or fluid level is too low - Pour fresh fluid or add transmission fluid to proper level |
| Transmission components are damaged or worn - Check CVT transmission components and change if necessary |
| Rusty or worn shift linkage - Install a new gear linkage |
| Hydrostatic pump is worn or stuck - Repair or replace pump |
| Transmission shift control components are defective or misadjusted - Replace or adjust as required |
| Insufficient transmission oil - Need to add transmission oil |
| Defective or worn drive sheave - Change sheave |
| Shift linkage is damaged or unadjusted - Replace or adjust linkage |
| Defective or not adjusted speed control pedal linkage - Change or adjust linkage |
| Broken transmission gaskets or seals - Replace seals or gaskets |
| Leaking final drive shaft - Change shaft seals |
| Transmission housing is cracked - Housing needs to be replaced |
| Mower Deck Troubleshooting |
| Mower vibrates excessively |
| Worn or dirty mower drive pulley - Clean or change pulley |
| Loose or damaged drive belt - Adjust belt tension or replace belt |
| Mower blades are not balanced or warped - Change or balance blades |
| Blade mounting bolts are loose - Tighten it fast |
| Discharge chute is constantly plugged |
| Fast mowing speed - Select a slower speed |
| Long grass - Adjust mower to lower cutting height |
| Engine rpm is too low - Open choke fully |
| Mower deck set to low cutting - Use correct cutting height |
| Mower drive belt installation is improper - Install drive belt as required |
| Lawn mower leaving uncut grass |
| Discharge chute is plugged - Need to clean the mower deck |
| Blades are not sharp - Need to sharpen the blades |
| Worn or damaged blades - Replace the blades |
| Fast mowing speed - Operate at slower speed |
| Cutting height is too low - Use a higher cutting height |
| Full bagger - Clean bagger |
| Lawn is bumpy or not smooth - Lawn leveling required |
| Cutting level is too low - Use a higher cutting height |
| Fast mowing speed - Use a slower speed |
| Deck level is not correct - Deck should be adjusted correctly |
| Blades are bent or worn - Replace the blades |
| Tires are not properly inflated - Need to inflate tires |
| Incorrect tire pressure - Inflate tires correctly |
| Mower deck is not leveled properly - Level the deck correctly |
| Not sharp blades - Blades need to be sharpened |
| Bent or worn blades - Blades need to be replaced |
| Cutting deck is clogged - Clean mower deck as required |
| Deck housing is damaged - Repair or replace the deck |
| Loose or defective mower spindle - Install new spindle or repair it |
| Electrical Troubleshooting |
| Battery does not charge |
| Electrical wire connections are corroded or loose Tighten or clean electrical wiring connections |
| Battery terminal connectors are faulty - Terminal connectors should be replaced |
| Battery dead cell - Use a new battery |
| Low battery capacity - Low battery charging, charge as required |
| Battery drains quickly - Service or change the battery |
| Corroded battery terminals or disconnected wires - Check cable connections and change or clean terminals |
| Battery is low or faulty - Need to charge or replace the battery |
| Disconnected or improperly connected wiring harness - Inspect battery wiring harness and connect as required |
| Battery capacity is low - Battery is drained, recharge it |
| Incorrectly gapped or worn spark plug - Clean, gap or replace spark plug |
| Starter motor or solenoid is damaged - Change solenoid or repair starter |
