John Deere LT160 Troubleshooting
The

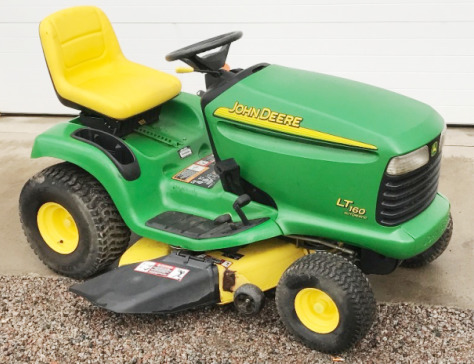

John Deere LT160 lawn tractor was manufactured between 2002 and 2005. The John
Deere LT160 powerline system components: a 29.9 cu.in (490 cc) Kohler Command
CV460S 4-cycle vertical shaft single cylinder air-cooled gasoline engine with a
rated power of 16 hp (11.9 kW) at 3600 prm, and Tuff Torq K46 belt-driven
hydrostatic transmission with foot-controlled variable speed drive.
The engine has a fixed main jet carburetor, mechanical diaphragm type
fuel pump, and full pressure lubrication system with full-flow oil
filter. The maximum forward speed - 5.8 mph (9.3 kph), max. reverse
speed - 3.5 mph (5.6 kph). The tractor is equipped with a manual
steering system, mechanical disc brakes, 15x6.00-6 front tires, and
20x10.00-8 rear tires. The wheelbase is 48 in (1210 mm).
The John Deere LT160 is compatible with the following attachments: a 42"
mid-mount 2-blade mower deck with cutting height of 1.0-4.0 in (25-102
mm) and mechanical lift system, and 44" front-mount blade.
| Engine Troubleshooting |
| Engine doesn't start or hard to start |
| Gas tank is empty - Fill gasoline up |
| Incorrect fuel grade - Use quality gasoline |
| Air in the fuel lines - Bleed the fuel lines |
| Spark plug wiring connection is defective - Inspect the spark plug wire connection, replace or repair |
| Faulty spark plug - Replace spark plug |
| Fuel filter is clogged - Change fuel filter |
| Faulty safety switch - Change damaged switch |
| Carburetor is dirty - Wash, clean and adjust |
| Bad engine compression - Inspect cylinder block and replace worn components |
| Damaged or not adjusted choke cable - Replace cable or adjust properly |
| Cooling fins are clogged - Need to wash or clean |
| Defective ignition system - Check ignition and replace faulty components |
| Choke cable is stuck or defective - Replace or service the cable |
| Air filter element is plugged - Replace or clean air filter |
| Fuel pump is clogged or faulty - Check fuel pump and change if required |
| Engine starts but immediately stops |
| Spark plug is damaged - Change spark plug as required |
| Dirty or defective carburetor - Clean or replace carburetor |
| Ignition coil is faulty - Replace ignition coil as necessary |
| Valve springs are loose or broken - Install new valve springs |
| Valves sticking - Service the valves |
| Engine oil level is low - Checking oil level and add if necessary |
| Engine overloaded - Reduce the load |
| Air intake grill is clogged - Need to wash or clean |
| Carburetor is running lean - Set the carburetor correctly |
| Incorrect ignition timing - Ignition timing needs to be set properly |
| Valve setting is incorrect - Set the valves properly |
| Low octane gasoline - Use proper fuel |
| Engine is overloaded - Load reducing is recommended |
| Low engine oil level - Add oil to the engine crankcase |
| Low idle speed adjustment is incorrect - Adjust as required |
| Fuel pump is clogged or faulty - Clean or install new fuel pump |
| Worn main bearings or crankshaft - Crankshaft or bearings need to be replaced |
| Excessive valve clearance - Adjust valve clearance |
| Piston rings or cylinder bore are worn - Replace defective parts |
| Improperly adjusted or dirty carburetor - Clean or properly adjust carburetor |
| Dirty air filter element - Replace or clean air filter |
| Clogged or defective fuel pump - Clean or change fuel pump |
| Ignition system is defective - Inspect ignition system and change failed components |
| Cylinder head gasket is blown - Install new cylinder head gasket |
| Stuck or burned valves - Service or replace valves |
| Push rod is damaged or worn - Replace push rod |
| Worn cylinder block components - Replace defective parts |
| Engine using too much gasoline |
| Choke is not fully open - Check choke cable and adjust it |
| Incorrect carburetor main jet adjustment - Adjust it properly |
| Faulty or loose spark plug - Tighten or replace spark plug |
| Valves are stuck, burned, or worn - Clean or replace valves |
| Rings, sleeve, or piston are damaged - Replace faulty parts |
| Valve clearance is wrong - Check and adjust |
| Excessive oil consumption |
| Seals or gaskets are wearing excessively - Defective components must be replaced |
| Valve guides or stems are damaged - Change the valves |
| Piston rings are stuck or broken - Install new piston rings |
| Cylinder liner or piston is scored - Check liner and piston, change as required |
| Breather pipe or hose is blocked - Replace or service |
| Hydrostatic Transmission Troubleshooting |
| Excessive hydrostatic transmission noise |
| Worn or out of adjustment speed control linkage - Adjust or change linkage |
| Excessive loading - Reduce loading |
| Oil is dirty or oil level is too low - Add oil to the correct level or fill the transmission with fresh oil |
| Worn or defective parts of transmission - Check transmission parts for damage or wear and replace if required |
| Stuck or damaged gshift linkage - Replace or repair the linkage |
| Hydrostatic pump is stuck or worn - Repair or replace pump |
| Worn or misadjusted transmission shift control parts - Adjust correctly or replace |
| Insufficient transmission oil - Check transmission oil level and add oil as required |
| Drive pulley is defective or worn - Change pulley |
| Shift linkage is unadjusted or damaged - Adjust properly or change linkage |
| Defective or not adjusted speed control pedal linkage - Adjust or change linkage |
| Transmission seals or gaskets are broken - Seals and gaskets need to be replaced |
| Leaking final drive shaft - Shaft seals need to be changed |
| Transmission case is cracked - Change broken case |
| Mower Deck Troubleshooting |
| Mower vibrates excessively |
| Dirty or worn mower drive sheave - Change or clean sheave |
| Drive belt is worn or loose - Belt needs to be adjusted or replaced |
| Unbalanced or warped mower blades - Balance or change blades |
| Blade mounting bolts are loose - Bolts should be tightened |
| Discharge chute is constantly plugged |
| Mowing speed is too high - Select a slower speed |
| Tall grass - Need to set low cutting height |
| Low engine speeds - Open throttle fully |
| Cutting level is too low - Must be set to high cutting height |
| Incorrect mower drive belt installation - Install drive belt correctly |
| Lawn mower leaving uncut grass |
| Discharge area is clogged - Mower deck needs to be cleaned |
| Blades are excessively dull - Blades need to be sharpened |
| Defective or worn blades - Install new blades |
| Ground speed is too fast - Operate at slower speed |
| Low cutting height - Use a higher cutting height |
| Filled grass bag - Grass bag must be empty |
| Bumpy or not smooth lawn - Lawn leveling required |
| Cutting level is too low - Use a higher cutting height |
| High mowing speed - Use a lower speed |
| Improper mower deck level - Adjust the level of mower deck correctly |
| Damaged or bent blades - Blades need to be replaced |
| Low tire pressure - Check and inflate the tires |
| Tires are not correctly inflated - Inflate tires as required |
| Mower deck is not leveled properly - Level the deck properly |
| Not sharp blades - Blades need to be sharpened |
| Worn or defective blades - Blades need to be replaced |
| Discharge chute is plugged - Check cutting deck and clean as necessary |
| Deck housing is broken - Rebuild or replace mower deck |
| Bent or loose mower spindle - Repair or replace the spindle |
| Electrical Troubleshooting |
| Battery is not charging |
| Corroded or loose wire connections - Clean or tighten connections |
| Battery terminal clamps are defective - Replace terminal clamps |
| Battery dead cell - Replace the battery |
| Low battery power - Recharge the battery |
| Battery is draining quickly - Battery needs service or replacement |
| Disconnected wires or corroded battery terminals - Check cable connections and replace or service terminals |
| Starter motor is not working |
| Battery is discharged or defective - Recharge or replace battery |
| Battery cables are disconnected or incorrectly connected - Check cables and connect as needed |
| Battery voltage is low - Battery is drained, recharge it |
| Spark plug gapped improperly or faulty - Clean, gap or replace spark plug |
| Defective solenoid or starter motor - Starter/solenoid should be replaced |
