John Deere LX176 Troubleshooting
The

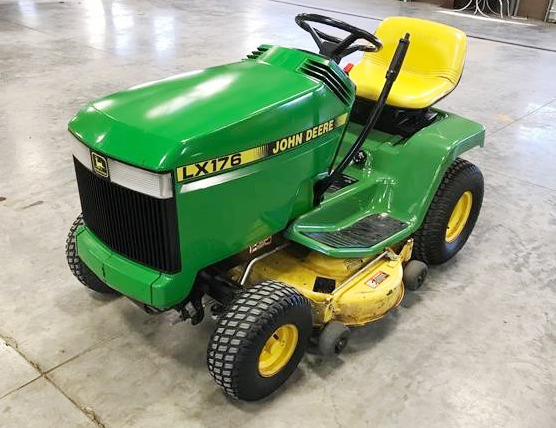

John Deere LX176 is a two-wheel drive lawn tractor. This model was manufactured
from 1991 to 1998. The components of John Deere LX176 driveline system: a 25.8
cu.in (423 cc) Kawasaki FC420V 4-Stroke OHV single cylinder forced air-cooled
gasoline engine with a rated power of 14 Hp (10.4 kW), and Tuff Torq K61
belt-driven hydrostatic transmission with infinite forward and reverse gears.
The engine has a carburetor with a float fixed main jet, diaphragm type
pulse pump, and transistorized flywheel magneto ignition. Max. travel
speed (forward/reverse): 5.5 mph (8.8 km/h) and 2.5 mph (4 km/h). The
John Deere LX176 was equipped with a manual sector and pinion steering,
mechanical band brakes, 15x6.00-6 front tires, and 20x10.00-8 rear
tires. The wheelbase is 46" (1160 mm).
Compatible attachments for the lawn tractor: a 38" mid-mount 2-blade
mower deck with cutting height of 1.5-4.0" (38-102 mm) and manual lift
system, 44", 48" mid-mount 3-blade mower deck with cutting height of
1.0-4.0" (25-102 mm) and mechanical lift system, 38", 42" front-mount
single-stage snowblower, and 42" front-mount blade with lift height of
5" (125 mm).
| Engine Troubleshooting |
| Engine doesn't start or hard to start |
| Empty gas tank - Add fuel |
| Wrong grade of gasoline - Use quality gasoline |
| Air in the fuel lines - Bleed the fuel lines |
| Spark plug wire is disconnected or loose - Inspect spark plug wiring connection, change or repair |
| Spark plug is defective - Spark plug need to be replaced |
| Fuel filter is clogged - Change fuel filter |
| Brake pedal not depressed - Press the brake pedal |
| Carburetor is not adjusted - Check carburetor float adjustment |
| Weak cylinder compression - Inspect cylinder block and change worn parts |
| Damaged or not adjusted choke cable - Adjust correctly or replace the cable |
| Air intake grill is clogged - Need to wash or clean |
| Ignition system failure - Test ignition and replace failed parts |
| Faulty or stuck throttle cable - Change or service the cable |
| Air filter is blocked - Change or service air filter |
| Fuel pump is dirty or defective - Service or replace fuel pump |
| Engine starts but immediately stops |
| Faulty spark plug - Replace spark plug |
| Clogged or faulty carburetor - Clean or change carburetor |
| Ignition coil is not working - Change ignition coil as required |
| Valve springs are damaged or weak - Valve springs need to be changed |
| Valves are stuck - Clean the valves |
| Engine oil insufficient - Check and refill engine oil |
| Engine is overloaded - Reduce load |
| Cooling fins are clogged - Wash or clean as required |
| Carburetor mixture is too lean - Adjust carburetor correctly |
| Ignition timing is improper - Set the ignition timing correctly |
| Incorrect valve setting - Valves needs to be adjusted properly |
| Stale or low octane fuel - Use correct fuel |
| Engine is overloaded - Load reducing is recommended |
| Low engine oil level - Check and refill engine oil |
| Too low idle RPM - Test and adjust |
| Fuel pump is dirty or defective - Test fuel pump and change if necessary |
| Crankshaft or main bearings wear - Need to install new components |
| Valve clearance is wrong - Adjustment procedure required |
| Worn piston rings or cylinder bore - Replace faulty parts |
| Incorrectly adjusted or dirty carburetor - Service or properly adjust carburetor |
| Air filter is blocked - Service or replace air filter |
| Clogged or damaged fuel pump - Service or change fuel pump |
| Ignition system problems - Check ignition and replace faulty components |
| Worn cylinder head gasket - Replace the gasket as required |
| Valves are stuck or burned - Clean or change valves |
| Bent or worn push rod - Change push rod |
| Cylinder block components are worn - Replace defective parts |
| Engine uses too much fuel |
| Insufficient choke opening - Inspect choke cable and adjust as required |
| Carburetor main jet adjustment is incorrect - Adjust the carburetor main jet properly |
| Loose or defective spark plug - Re-tighten or change the spark plug |
| Valves are stuck, burned, or worn - Clean or replace valves |
| Piston, sleeve, or rings are damaged - Replace defective parts |
| Valve clearance is wrong - Need to adjust valve clearance |
| Engine using too much oil |
| Damaged gaskets or seals - Install new components |
| Damaged valve stems or valve guides - Valves replacement required |
| Worn or broken piston rings - Replace piston rings |
| Piston or cylinder liner is scored - Inspect liner and piston, change as necessary |
| Breather pipe or hose is blocked - Service or replace |
| Hydrostatic Transmission Troubleshooting |
| HST transmission noises |
| Bent or unadjusted speed control pedal linkage - Replace or adjust linkage |
| Excessive loading - Reduce the load is required |
| Oil is dirty or oil level is too low - Fill to required level or change the transmission oil |
| Transmission components are damaged or worn - Replace or repair defective components |
| Rusty or worn shift linkage - Install a new gear linkage |
| Hydrostatic pump is worn or stuck - Repair or change pump |
| Worn or misadjusted transmission shift control parts - Change or adjust correctly |
| Low fluid level - Fill the transmission housing to proper fluid level |
| Worn or defective drive pulley - Change pulley |
| Shift linkage is unadjusted or damaged - Replace or adjust linkage |
| Speed control linkage is defective or unadjusted - Adjust or install new linkage |
| Transmission gaskets or seals are worn - Install new seals or gaskets |
| Final drive shaft is leaking - Install new shaft seals |
| Transmission case is cracked - Replace case or transmission assembly |
| Mower Deck Troubleshooting |
| Excessive mower vibration |
| Dirty or worn mower drive sheave - Clean or replace sheave |
| Drive belt is loose or defective - Change belt or adjust belt tension |
| Warped or not balanced mower blades - Replace or balance blades |
| Blade bolts are not tightened well - Tighten it fast |
| Discharge chute regular clogging |
| High ground speed - Need to slow down |
| Long grass - Must be set to low cutting height |
| Engine rpm is too low - Throttle is not fully open |
| Cutting height is too low - Adjust mower to higher cutting height |
| Drive belt installation is not correct - Install drive belt as required |
| Lawn mower leaving uncut grass |
| Clogged mower deck - Need to clean the mower deck |
| Not sharp blades - Need a blade sharpening |
| Worn or defective blades - Replace the blades |
| High ground speed - Use a slower speed |
| Cutting level is too low - Use a higher cutting height |
| Bagger is full - Bagger must be empty |
| Lawn is bumpy or not smooth - Level the lawn |
| Cutting height is too low - Raise the cutting height |
| Mowing speed is too high - Use a lower speed |
| Incorrect level of mower deck - Adjust the level of mower deck correctly |
| Blades are worn or bent - Replace the blades |
| Low tire pressure - Inflate tires as required |
| Tires are not properly inflated - Inflate tires as required |
| Mower deck is not leveled properly - Level the deck correctly |
| Blades are not sharp - Need to sharpen the blades |
| Blades are worn or damaged - Blades must be changed |
| Mower deck is clogged - Need to clean the mower deck |
| Damaged mower deck shell - Rebuild or change mower deck |
| Loose or defective mower spindle - Change or repair the spindle |
| Electrical Troubleshooting |
| Battery cannot be charged |
| Loose or corroded electrical wiring connections - Service or tighten connections |
| Battery terminal connectors are faulty - Install new terminal connectors |
| Worn-out battery - Replace the battery |
| Low battery power - Low battery charging, charge as required |
| Battery runs out quickly - Battery needs service or replacement |
| Disconnected cables or faulty battery terminals - Connect cables correctly or replace terminals |
| Battery is low or faulty - Need to charge or replace the battery |
| Wiring harness is disconnected or improperly connected - Check wiring harness and connect as required |
| Battery voltage is low - Low battery charging, charge as required |
| Faulty or incorrectly gapped spark plug - Clean, gap or change spark plug |
| Damaged starter motor or solenoid - Starter/solenoid needs to be replaced |
