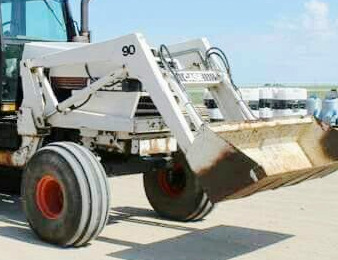

Case 90 Front End Loader

The Case 90 front end loader is designed for Case 2090, 2290, 2094 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The Case 90 front end loader has a lift capacity (at bucket pin) of 2800 lbs (1270 kg) to a max height of 159.6" (4040 mm) and breakout force (bucket on ground) of 4770 lbs (2170 kg). The clearance with a bucket dumped is 140.4" (3560 mm) at a maximum dump angle of 39 degrees.

The estimated cycle times are 5.5 seconds lifting to maximum height, and 5.2 seconds maximum bucket dumping. The Case 90 loader is compatible with a 83" (2110 mm) standard material bucket with a rated capacity of 0.27 m3 (9.5 cu.ft).

Compatible Tractors
Tractor Models Case 2090, 2290, 2094
Front Tires 11.00-16SL
Rear Tires 18.4x38
Hydraulic Flow, gpm (lpm) 23.0 (87.4)
Hydraulic Pressure, psi (bar) 2250 (155)

Loader
Loader Model Case 90
Leveling System Non Self Leveling
Weight, lbs (kg) 2160 (980)

Standard Material Bucket
Width, in (mm) 83.0 (2110)
Length, in (mm) 23.5 (600)
Height, in (mm) 25.8 (660)
Struck Capacity, cu.ft (m3) 7.7 (0.22)
Heaped Capacity, cu.ft (m3) 9.5 (0.27)

Loader Dimensions
Maximum lift height to bucket pivot pin (2094), in (mm) 159.6 (4040)
Maximum lift height to bucket pivot pin (2090, 2290), in (mm) 148.7 (3770)
Clearance with bucket dumped (2094), in (mm) 140.4 (3560)
Clearance with bucket dumped (2090, 2290), in (mm) 127.7 (3240)
Reach at maximum lift height (2094), in (mm) 30.1 (762)
Reach at maximum lift height (2090, 2290), in (mm) 41.2 (1040)
Reach with bucket on ground level (2094), in (mm) 80.4 (2030)
Reach with bucket on ground level (2090, 2290), in (mm) 88.1 (2230)
Maximum dump angle (2094), degrees 39
Maximum dump angle (2090, 2290), degrees 43
Maximum rollback angle (2094), degrees 23
Maximum rollback angle (2090, 2290), degrees 27
Digging depth, in (mm) 16.0 (480)

Operating Data
Lift capacity to maximum height at bucket pivot pin (2094), lbs (kg) 2800 (1270)
Lift capacity to maximum height at bucket pivot pin (2090, 2290), lbs (kg) 3770 (1528)
Breakout force at pivot pin (2094), lbs (kg) 4770 (2170)
Breakout force at pivot pin (2090, 2290), lbs (kg) 5500 (2495)

Cycle Times
Raise time to full height, sec 5,5
Lower time, sec 4,2
Bucket dump time, sec 5,2
Bucket rollback time, sec 6,9
