Case IH 2200 Front End Loader
The

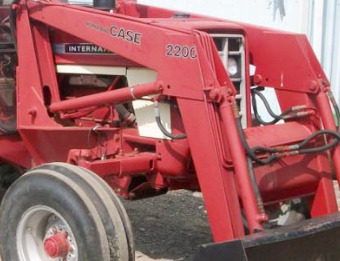

Case IH 2200 loader is used for Case IH C50 tractor. The loader hydraulic system
includes double-acting bucket and lift hydraulic cylinders. The Case IH 2200
front end loader has a lifting capacity (at pivot pin) of 1700 lbs (771 kg) to
maximum height of 108" (2740 mm), and bucket's breakout force of 2550 lbs (1156
kg).
The bucket dump clearance is 83" (2100 mm) at maximum dump angle of 46
degrees. The Case IH 2200 loader is compatible with a 60" (1520 mm)
standard material bucket with a rated capacity of 0.50 m3 (17.6 cu.ft),
and 72" (1830 mm) standard material bucket with a rated capacity of 0.61
m3 (21.3 cu.ft).
| Tractor Models |
Case IH C50 |
| Front Tires |
7.5x16 |
| Rear Tires |
14.9x28 |
| Hydraulic System Flow, gpm (lpm) |
12.7 (48.1) |
| Hydraulic Pressure, psi |
2500 |
| 60" Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Struck Capacity, cu.ft (m3) |
14.0 (0.40) |
| Heaped Capacity, cu.ft (m3) |
17.6 (0.50) |
| Weight, lb (kg) |
380 (173) |
| 72" Standard Material Bucket |
| Width, in (mm) |
72 (1830) |
| Struck Capacity, cu.ft (m3) |
16.9 (0.48) |
| Heaped Capacity, cu.ft (m3) |
21.3 (0.61) |
| Weight, lb (kg) |
455 (207) |
| Maximum lift height to bucket pivot pin, in (mm) |
108 (2740) |
| Clearance with bucket dumped, in (mm) |
83 (2100) |
| Reach at maximum lift height, in (mm) |
35 (880) |
| Maximum dump angle, degrees |
46 |
| Maximum rollback angle, degrees |
10 |
| Lift capacity to maximum height at bucket pivot pin, lbs (kg) |
1700 (771) |
| Breakout force at pivot pin, lbs (kg) |
2550 (1156) |
