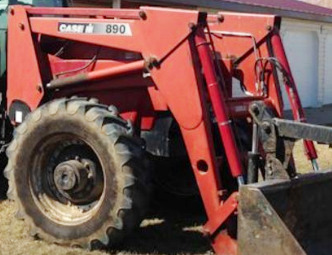

Case IH 890 Loader

The Case IH 890 loader fits Case IH 8910, 8940, 8950 tractors. The loader has double acting bucket and lift hydraulic cylinders. The Case IH 890 front-end loader has a max lift height of 174" (4410 mm) at pin and bucket dump clearance of 138" (3500 mm). The lift capacity is 4100 lbs (1859 kg) to max height at pin, and boom breakout force is 6700 lbs (3039 kg).

The rated cycle times are 9.1 seconds raising to maximum height, and 3.5 seconds maximum bucket rollback. The Case IH 890 loader is equipped with the following standard material buckets: a 83" (2100 mm) bucket with a rated capacity of 0.81 m3 (28.4 cu.ft), 95" (2400 mm) bucket with a rated capacity of 0.94 m3 (32.9 cu.ft), or 102" (2580 mm) bucket with a rated capacity of 1.03 m3 (36.1 cu.ft).

Compatible Tractors
Tractor Models Case IH 8910, 8940, 8950
Front Tires 14L-16.1
Rear Tires 18.4R-42
Hydraulic System Flow, gpm (lpm) 29.0 (109.8)

Loader
Loader Model Case IH 890 MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 3765 (1707)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 23.8 (0.68)
Heaped Capacity, cu.ft (m3) 28.4 (0.81)
Weight, lb (kg) 697 (317)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 27.3 (0.78)
Heaped Capacity, cu.ft (m3) 32.9 (0.94)
Weight, lb (kg) 816 (370)

102" Standard Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 875 (398)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 174 (4410)
Clearance with bucket dumped, in (mm) 138 (3500)
Reach at maximum lift height, in (mm) 41 (1040)
Maximum dump angle, degrees 47
Reach with bucket on ground level, in (mm) 104 (2640)
Maximum rollback angle, degrees 40

Operating Data
Lift capacity to maximum height at bucket pivot pin, lbs (kg) 4100 (1859)
Breakout force at pivot pin, bucket at ground, lbs (kg) 6700 (3039)

Cycle Times
Raise time to full height, second 9,1
Lower time, second 6,1
Bucket rollback, second 3,5
