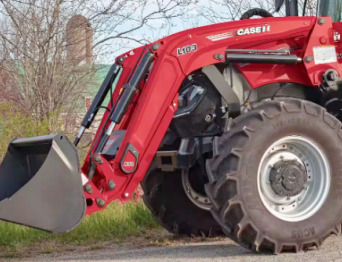

Case IH L103 Front End Loader

The Case IH L103 loader is compatible with Case IH Maxxum 125, 150 (NSL), Case IH Farmall 100C, 120C (MSL) tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The Case IH L103 NSL loader has a lift capacity (at pivot pin) of 3836 lbs (1740 kg) to a maximum height of 143" (3640 mm) and breakout force of 4982 lbs (2260 kg) with bucket on ground.

A full dump clearance with a 60-degree maximum dump angle is 105" (2670 mm). The Case IH L103 loader is equipped with a 63" (1600 mm) standard material bucket with a heaped capacity of 0.53 m3 (18.6 cu.ft), and 72" (1830 mm) standard material bucket with a heaped capacity of 0.62 m3 (21.5 cu.ft).

Compatible Tractors
Tractor Models Case IH Maxxum 125, 150 (NSL), Case IH Farmall 100C, 120C (MSL)
Front Tires 14.9R28
Rear Tires 18.4R38
Hydraulic System Flow, gpm (lpm) 26.0 (100.3) / 16.9 (60.6)

Loader
Loader Model Case IH L103 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 3060 (1390)

63" Standard Material Bucket
Width, in (mm) 63 (1600)
Struck Capacity, cu.ft (m3) 14.7 (0.42)
Heaped Capacity, cu.ft (m3) 18.6 (0.53)
Weight, lb (kg) 395 (179)

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 17.1 (0.49)
Heaped Capacity, cu.ft (m3) 21.5 (0.62)
Weight, lb (kg) 465 (210)

Loader Dimensions
Maximum lift height to bucket pivot pin (NSL), in (mm) 143 (3640)
Maximum lift height to bucket pivot pin (MSL), in (mm) 141 (3580)
Maximum lift height under level bucket (NSL), in (mm) 131 (3330)
Maximum lift height under level bucket (MSL), in (mm) 129 (3270)
Clearance with bucket dumped (NSL), in (mm) 105 (2670)
Clearance with bucket dumped (MSL), in (mm) 103 (2610)
Reach at maximum lift height (NSL), in (mm) 35.4 (900)
Reach at maximum lift height (MSL), in (mm) 39 (980)
Reach with bucket on ground level (NSL), in (mm) 84 (2130)
Reach with bucket on ground level (MSL), in (mm) 95 (2410)
Maximum dump angle, degrees 60
Maximum rollback angle (NSL), degrees 44
Maximum rollback angle (MSL), degrees 46
Digging depth (NSL), in (mm) 3.1 (80)
Digging depth (MSL), in (mm) 5.5 (140)

Operating Data
Lift capacity to max height at pivot pin (NSL), lbs (kg) 3836 (1740)
Lift capacity to max height at pivot pin (MSL), lbs (kg) 2866 (1300)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2381 (1080)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3241 (1470)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 4277 (1940)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 3219 (1460)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3175 (1440)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3285 (1490)
Breakout force at pivot pin (NSL), lbs (kg) 4982 (2260)
Breakout force at pivot pin (MSL), lbs (kg) 3792 (1720)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3439 (1560)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3417 (1550)
Bucket rollback force at max height (NSL), lbs (kg) 3109 (1410)
Bucket rollback force at max height (MSL), lbs (kg) 3064 (1390)
Bucket rollback force at ground level (NSL), lbs (kg) 5490 (2490)
Bucket rollback force at ground level (MSL), lbs (kg) 5004 (2270)
