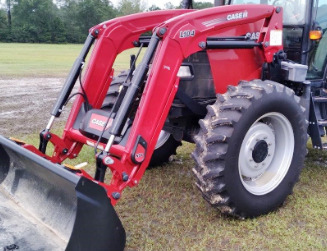

Case IH L104 Front End Loader

The Case IH L104 NSL/MSL loader is available for Case IH Farmall 110A, 120A, 130A, 140A tractors. The Case IH L104 loader has double acting hydraulic lifting and bucket cylinders. The NSL loader’s maximum lift height is 151 in (3840 mm) at pin, and clearance with bucket dumped is 113 in (2870 mm).

The lifting capacity is 3395 lbs (1540 kg) at maximum height (bucket pin), and breakout force (bucket on ground) is 5247 lbs (2380 kg). Compatible buckets for the Case IH L104 front-end loader: 63" (1850 mm) standard material bucket with a heaped capacity of 0.62 m3 (21.5 cu.ft), and 83" (2100 mm) standard material bucket with a heaped capacity of 0.70 m3 (24.7 cu.ft).

Compatible Tractors
Tractor Models Case IH Farmall 110A, 120A, 130A, 140A
Front Tires 14.9R24
Rear Tires 18.4R34
Hydraulic System Flow, gpm (lpm) 22.0 (83.3)

Loader
Loader Model Case IH L104 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 3060 (1391)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu.ft (m3) 17.1 (0.49)
Heaped Capacity, cu.ft (m3) 21.5 (0.62)
Weight, lb (kg) 465 (210)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.5 (0.55)
Heaped Capacity, cu.ft (m3) 24.7 (0.70)
Weight, lb (kg) 510 (230)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 151 (3840)
Maximum lift height under level bucket, in (mm) 139 (3530)
Clearance with bucket dumped, in (mm) 113 (2870)
Reach at maximum lift height, in (mm) 38.2 (970)
Reach with bucket on ground level, in (mm) 94.5 (2400)
Maximum dump angle, degrees 62
Maximum rollback angle, degrees 45
Digging Depth, in (mm) 5 (130)

Operating Data
Lift capacity to max height at pivot pin (MSL), lbs (kg) 3395 (1540)
Lift capacity to max height at pivot pin (NSL), lbs (kg) 4079 (1850)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3814 (1730)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2557 (1160)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 3836 (1740)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 4586 (2080)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3858 (1750)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3417 (1550)
Breakout force at pivot pin (MSL), lbs (kg) 4409 (2000)
Breakout force at pivot pin (NSL), lbs (kg) 5247 (2380)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3968 (1800)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3682 (1670)
Bucket rollback force at maximum height (MSL), lbs (kg) 4167 (1890)
Bucket rollback force at maximum height (NSL), lbs (kg) 3968 (1800)
Bucket rollback force at ground level (MSL), lbs (kg) 6680 (3030)
Bucket rollback force at ground level (NSL), lbs (kg) 6812 (3090)
