Case L105 Front End Loader

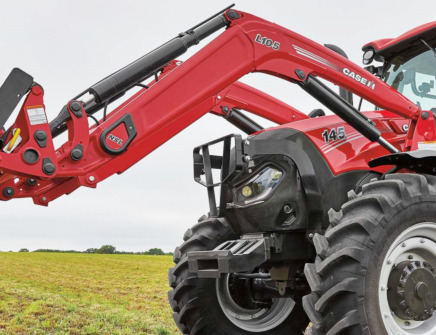

The Case IH L105 NSL or MSL front end loader is fitted to Case IH Maxxum 115, 125, 135, 145, 150 tractors. The loader is equipped with double acting bucket and lifting hydraulic cylinders.

The front end loader has a lift capacity (at bucket pin) of 4630 lbs (2100 kg) to maximum height of 162" (4120 mm), and boom breakout force of 6526 lbs (2960 kg). The clearance with a bucket dumped is 124" (3150 mm) at max dump angle of 56 degrees.

The Case IH L105 loader is compatible with the following buckets: a 83" (2100 mm) standard material bucket with a heaped capacity of 24.7 cu.ft (0.70 m3), or 95" (2400 mm) standard material bucket with a heaped capacity of 32.9 cu.ft (0.94 m3).

Compatible Tractors
Tractor Models Case IH Maxxum 115, 125, 135, 145, 150
Front Tires 14.9R28
Rear Tires 18.4R38
Hydraulic System Flow, gpm (lpm) 26.0 (100.3)

Loader
Loader Model Case IH L105 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 3055 (1385)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.5 (0.55)
Heaped Capacity, cu.ft (m3) 24.7 (0.70)
Weight, lb (kg) 510 (230)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 27.3 (0.78)
Heaped Capacity, cu.ft (m3) 32.9 (0.94)
Weight, lb (kg) 816 (370)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 162 (4120)
Maximum lift height under level bucket, in (mm) 150 (3810)
Clearance with bucket dumped, in (mm) 124 (3150)
Reach at maximum lift height, in (mm) 28 (710)
Reach with bucket on ground level, in (mm) 99 (2520)
Maximum dump angle, degrees 56
Maximum rollback angle, degrees 47
Digging depth, in (mm) 3.9 (100)

Operating Data
Lift capacity to maximum height at pivot pin (NSL), lbs (kg) 4630 (2100)
Lift capacity to maximum height at pivot pin (MSL), lbs (kg) 4542 (2060)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2932 (1330)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 5203 (2360)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 5578 (2530)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 5490 (2490)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 4233 (1920)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 5512 (2500)
Breakout force at pivot pin (NSL), lbs (kg) 6526 (2960)
Breakout force at pivot pin (MSL), lbs (kg) 6437 (2920)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 4674 (2120)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 5975 (2710)
Bucket rollback force at maximum height (NSL), lbs (kg) 4387 (1990)
Bucket rollback force at maximum height (MSL), lbs (kg) 5357 (2430)
Bucket rollback force at ground level (NSL), lbs (kg) 7738 (3510)
Bucket rollback force at ground level (MSL), lbs (kg) 8841 (4010)
