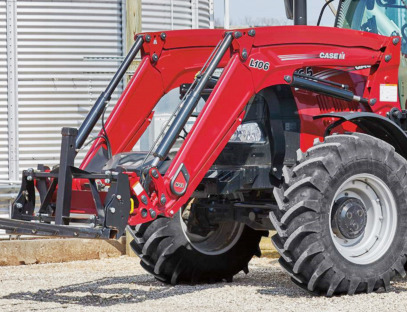

Case L106 Front End Loader

The Case IH L106 mechanical self leveling loader is available for Case IH Puma 150, 155, 165 tractors. The loader hydraulic system includes double-acting hydraulic bucket and lifting cylinders.

The loader has a lifting capacity (at pivot pin) of 5225 lbs (2370 kg) to full height of 167" (4230 mm), and breakout force of 6878 lbs (3120 kg ). A full dump clearance with a 58-degree max dump angle is 129" (3270 mm).

The Case IH L106 loader can be equipped with the following buckets: a 83" (2100 mm) heavy-duty material bucket with a heaped capacity of 28.4 cu.ft (0.81 m3), 95" (2400 mm) heavy-duty material bucket with a heaped capacity of 32.9 cu.ft (0.94 m3), and 102" (2580 mm) heavy-duty material bucket with a heaped capacity of 36.1 cu.ft (1.03 m3).

Compatible Tractors
Tractor Models Case IH Puma 150, 155, 165
Front Tires 14.9R28
Rear Tires 18.4R38
Hydraulic System Flow, gpm (lpm) 26.5 (100.3)

Loader
Loader Model Case IH L106 MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 3059 (1390)

83" Heavy Duty Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 23.8 (0.68)
Heaped Capacity, cu.ft (m3) 28.4 (0.81)
Weight, lb (kg) 697 (317)

95" Heavy-Duty Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 27.3 (0.78)
Heaped Capacity, cu.ft (m3) 32.9 (0.94)
Weight, lb (kg) 816 (370)

102" Heavy Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 875 (398)


Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 167 (4230)
Maximum lift height under level bucket, in (mm) 154 (3920)
Clearance with bucket dumped, in (mm) 129 (3270)
Reach at maximum lift height, in (mm) 38 (960)
Reach with bucket on ground level, in (mm) 107 (2730)
Maximum dump angle, degrees 58
Maximum rollback angle, degrees 48
Digging depth, in (mm) 7.5 (190)

Operating Data
Lift capacity to maximum height at bucket pivot pin, lbs (kg) 5225 (2370)
Lift capacity to maximum height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 5578 (2530)
Lift capacity to 59" (1.5m) height at bucket pivot pin, lbs (kg) 6063 (2750)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 6107 (2770)
Breakout force at bucket pivot pin, lbs (kg) 6878 (3120)
Breakout force at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 6415 (2910)
Bucket rollback force at maximum height, lbs (kg) 6460 (2930)
Bucket rollback force at ground level, lbs (kg) 10274 (4660)
