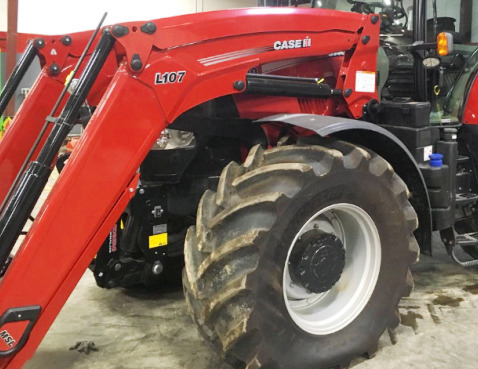

Case L107 Front End Loader

The Case IH L107 MSL front end loader is designed to fit Case IH Puma 185, 195, 200, 210, 225, 240 tractors. The loader has double acting hydraulic bucket and lift cylinders.

The loader has a lift capacity (at pivot pin) of 4519 lbs (2050 kg) to a 187" (4740 mm) max height and bucket's breakout force of 5754 lbs (2610 kg). The bucket dump clearance is 148" (3770 mm) at maximum dump angle of 53 degrees.

Compatible buckets for the Case IH L107 loader: a 95" (2400 mm) heavy-duty material bucket with a heaped capacity of 32.9 cu.ft (0.94 m3), 102" (2580 mm) heavy-duty material bucket with a heaped capacity of 36.1 cu.ft (1.03 m3), 87" (2200 mm) high volume bucket with a heaped capacity of 44.5 cu.ft (1.27 m3), or 95" (2400 mm) high volume bucket with a heaped capacity of 59.2 cu.ft (1.69 m3).

Compatible Tractors
Tractor Models Case IH Puma 185, 195, 200, 210, 225, 240
Front Tires 420/85R30
Rear Tires 520/85R42
Hydraulic System Flow, gpm (lpm) 32.0 (120.0)

Loader
Loader Model Case IH L107 MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 3060 (1390)

95" Heavy-Duty Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 27.3 (0.78)
Heaped Capacity, cu.ft (m3) 32.9 (0.94)
Weight, lb (kg) 816 (370)

102" Heavy-Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 875 (398)

87" High Volume Bucket
Width, in (mm) 87 (2200)
Struck Capacity, cu.ft (m3) 37.1 (1.06)
Heaped Capacity, cu.ft (m3) 44.5 (1.27)
Weight, lb (kg) 650 (296)

95" High Volume Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 49.4 (1.41)
Heaped Capacity, cu.ft (m3) 59.2 (1.69)
Weight, lb (kg) 913 (415)


Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 187 (4740)
Maximum lift height under level bucket, in (mm) 174 (4430)
Clearance with bucket dumped, in (mm) 148 (3770)
Reach at maximum lift height, in (mm) 38 (960)
Reach with bucket on ground level, in (mm) 121 (3080)
Maximum dump angle, degrees 53
Maximum rollback angle, degrees 52
Digging depth, in (mm) 7.5 (190)

Operating Data
Lift capacity to maximum height at bucket pivot pin, lbs (kg) 4519 (2050)
Lift capacity to maximum height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 4167 (1890)
Lift capacity to 59" (1.5m) height at bucket pivot pin, lbs (kg) 5049 (2290)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 5159 (2340)
Breakout force at bucket pivot pin, lbs (kg) 5754 (2610)
Breakout force at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) 5490 (2490)
Bucket rollback force at maximum height, lbs (kg) 6371 (2890)
Bucket rollback force at ground level, lbs (kg) 10362 (4700)
