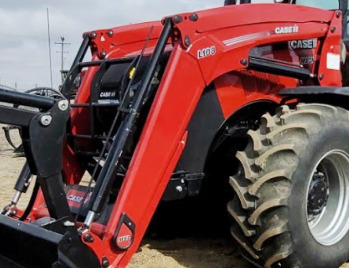

Case IH L108 Front End Loader
The
Case IH L108 mechanical self leveling front end loader is designed for Case IH
Magnum 180, 200, 220, 235, 240 tractors. The front end loader has double acting
hydraulic bucket and lift cylinders. The Case IH L108 front end loader has a
lift capacity (at bucket pin) of 5952 lbs (2700 kg) to a max height of 174"
(4410 mm) and breakout force (bucket on ground) of 9171 lbs (4160 kg). The
clearance with a bucket dumped is 136" (3450 mm) at a maximum dump angle of 49
degrees.
The Case IH L108 loader is compatible with the following buckets: a 95"
(2400 mm) standard material bucket with a heaped capacity of 0.94 m3
(32.9 cu.ft), or 102" (2580 mm) standard material bucket with a heaped
capacity of 1.03 m3 (36.1 cu.ft).
| Tractor Models |
Case IH Magnum 180, 200, 220, 235, 240 |
| Front Tires |
380/85R34 |
| Rear Tires |
480/80R46 |
| Hydraulic System Flow, gpm (lpm) |
32.0 (120.0) |
| Loader Model |
Case IH L108 MSL |
| Leveling System |
Mechanical Self Leveling |
| Weight, lb (kg) |
3060 (1390) |
| 95" Standard Material Bucket |
| Width, in (mm) |
95 (2400) |
| Struck Capacity, cu.ft (m3) |
27.3 (0.78) |
| Heaped Capacity, cu.ft (m3) |
32.9 (0.94) |
| Weight, lb (kg) |
816 (370) |
| 102" Standard Material Bucket |
| Width, in (mm) |
102 (2580) |
| Struck Capacity, cu.ft (m3) |
29.4 (0.84) |
| Heaped Capacity, cu.ft (m3) |
36.1 (1.03) |
| Weight, lb (kg) |
875 (398) |
| Width, in (mm) |
95 (2400) |
| Struck Capacity, cu.ft (m3) |
49.4 (1.41) |
| Heaped Capacity, cu.ft (m3) |
59.2 (1.69) |
| Weight, lb (kg) |
913 (415) |
| Width, in (mm) |
102 (2580) |
| Struck Capacity, cu.ft (m3) |
53.6 (1.53) |
| Heaped Capacity, cu.ft (m3) |
64.1 (1.83) |
| Weight, lb (kg) |
979 (445) |
| Maximum lift height to bucket pivot pin, in (mm) |
174 (4410) |
| Maximum lift height under level bucket, in (mm) |
162 (4110) |
| Clearance with bucket dumped, in (mm) |
136 (3450) |
| Reach with bucket on ground level, in (mm) |
120 (3050) |
| Maximum dump angle, degrees |
49 |
| Maximum rollback angle, degrees |
65 |
| Lift capacity to maximum height at bucket pivot pin, lbs (kg) |
5952 (2700) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) |
6151 (2790) |
| Lift capacity to 59" (1.5m) height at bucket pivot pin, lbs (kg) |
7760 (3520) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) |
6680 (3030) |
| Breakout force at bucket pivot pin, lbs (kg) |
9171 (4160) |
| Breakout force at 31.5" (0.8m) forward of bucket pivot pin, lbs (kg) |
8620 (3910) |
| Bucket rollback force at maximum height, lbs (kg) |
6768 (3070) |
| Bucket rollback force at ground level, lbs (kg) |
10714 (4860) |
