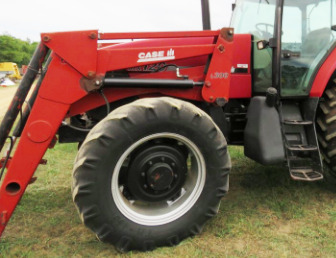

Case IH L300 Front End Loader

The Case IH L300 loader fits Case IH MX120, MX135 Maxxum tractors. The loader has double acting bucket and lift hydraulic cylinders. The Case IH L300 front-end loader has a max lift height of 153" (3880 mm) at pin and bucket dump clearance of 126" (3200 mm). The lift capacity is 2450 lbs (1110 kg) to max height at pin, and boom breakout force is 3150 lbs (1430 kg) for NSL models.

The rated cycle times are 3.6 seconds raising to maximum height, and 2.5 seconds maximum bucket dumping. The Case IH L300 loader is equipped with the following standard material buckets: a 72" (1820 mm) bucket with a rated capacity of 0.61 m3 (21.3 cu.ft), 84" (2130 mm) bucket with a rated capacity of 0.71 m3 (24.9 cu.ft), or 96" (2450 mm) bucket with a rated capacity of 0.82 m3 (28.6 cu.ft).

Compatible Tractors
Tractor Models Case IH MX120, MX135 Maxxum
Front Tires 14.9R28
Rear Tires 18.4R-38
Hydraulic System Flow, gpm (lpm) 25.0 (94.6)

Loader
Loader Model Case IH L300 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight (NSL), lb (kg) 2701 (1225)
Weight (MSL), lb (kg) 2751 (1247)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)

96" Standard Material Bucket
Width, in (mm) 96 (2450)
Struck Capacity, cu.ft (m3) 22.5 (0.64)
Heaped Capacity, cu.ft (m3) 28.6 (0.82)
Weight, lb (kg) 580 (264)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 153 (3880)
Clearance with bucket dumped, in (mm) 126 (3200)
Reach at maximum lift height, in (mm) 38 (960)
Maximum dump angle, degrees 50
Reach with bucket on ground level, in (mm) 93 (2360)
Maximum rollback angle, degrees 25

Operating Data
Lift capacity to maximum height at bucket pivot pin, lbs (kg) 2450 (1110)
Breakout force at bucket pivot pin (NSL), lbs (kg) 3150 (1430)
Breakout force at bucket pivot pin (MSL), lbs (kg) 4050 (1840)

Cycle Times
Raise time to full height, second 3,6
Lower time, second 2,6
Bucket dump time, second 2,5
Bucket rollback time, second 3,1
