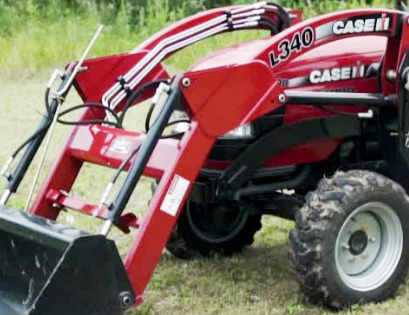

Case L340 Front End Loader

The Case IH L340 loader is fitted to Case IH Farmall 35A, 40A tractors. The loader is equipped with double acting hydraulic bucket and lift cylinders. The loader’s max lift height is 98.4 in (2500 mm) at pin and clearance with bucket dumped is 75.3 in (1913 mm).

The lift capacity is 1250 lbs (567 kg) to max height at pin, and bucket's breakout force is 2700 lbs (1225 kg). The time to raise the boom is 3.8 sec from ground level to max height, and bucket dumping time is 2.2 seconds.

The Case IH L340 front-end loader is compatible with a 68" (1720 mm) standard material bucket with a heaped capacity of 19.9 cu.ft (0.57 m3), or 66" (1670 mm) heavy-duty material bucket with a heaped capacity of 19.5 cu.ft (0.56 m3).

Compatible Tractors
Tractor Models Case IH Farmall 35A, 40A
Front Tires 27x10.50-15
Rear Tires 44x18-20
Hydraulic System Flow, gpm (lpm) 9.8 (37.1)

Standard Material Bucket
Width, in (mm) 68 (1720)
Struck Capacity, cu.ft (m3) 15.9 (0.45)
Heaped Capacity, cu.ft (m3) 19.9 (0.57)
Weight, lb (kg) 430 (198)

Heavy-Duty Material Bucket
Width, in (mm) 66 (1670)
Struck Capacity, cu.ft (m3) 15.6 (0.45)
Heaped Capacity, cu.ft (m3) 19.5 (0.56)
Weight, lb (kg) 525 (239)


Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 98.4 (2500)
Clearance with bucket dumped, in (mm) 75.3 (1913)
Reach at maximum lift height, in (mm) 31 (787)
Maximum dump angle, degrees 39
Maximum rollback angle, degrees 32
Digging Depth, in (mm) 8 (203)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 1250 (567)
Lift capacity to maximum height at 19.7" (0.5m) forward of pivot pin, lbs (kg) 890 (404)
Breakout force at pivot pin, lbs (kg) 2700 (1225)
Breakout force at 19.7" (0.5m) forward of pivot pin, lbs (kg) 1900 (862)

Cycle Times
Raise time to full height, sec 3,8
Lower time, sec 1,7
Bucket dump time, sec 2,2
