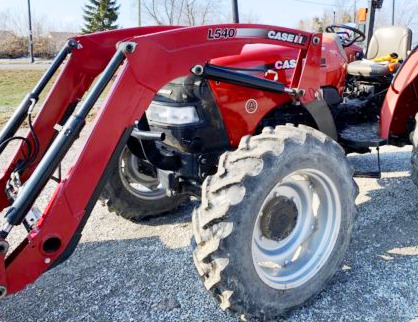

Case L540 Front End Loader

The Case IH L540 non self leveling front end loader is used for Case IH Farmall 65A, 75A tractors. The front end loader has double acting bucket and lifting hydraulic cylinders.

The loader’s max lift height is 126 inches (3190 mm) at pin, and bucket dump clearance is 99 inches (2510 mm). The lift capacity is 3250 lbs (1474 kg) to max height at pin, and breakout force (bucket on ground) is 4670 lbs (2118 kg).

The Case IH L540 loader is equipped with the following buckets: a 72" (1830 mm) heavy-duty material bucket with a heaped capacity of 21.4 cu.ft (0.62 m3), or 84" (2130 mm) heavy-duty material bucket with a heaped capacity of 24.9 cu.ft (0.72 m3).

Compatible Tractors
Tractor Models Case IH Farmall 65A, 75A
Front Tires 11.2-24 6PR
Rear Tires 16.9-30 6PR
Hydraulic System Flow, gpm (lpm) 10.8 (41.0)

Loader
Loader Model Case IH L540
Leveling System Non self leveling
Weight, lb (kg) 1310 (600)

72" Heavy-Duty Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 16.9 (0.49)
Heaped Capacity, cu.ft (m3) 21.4 (0.62)
Weight, lb (kg) 555 (252)


84" Heavy-Duty Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.8 (0.57)
Heaped Capacity, cu.ft (m3) 24.9 (0.72)
Weight, lb (kg) 630 (286)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 126 (3190)
Clearance with bucket dumped, in (mm) 99 (2510)
Reach at maximum lift height, in (mm) 34 (860)
Maximum dump angle, degrees 37
Maximum rollback angle, degrees 24
Digging Depth, in (mm) 4 (100)

Operating Data
Lift capacity to maximum height at bucket pivot pin, lbs (kg) 3250 (1474)
Lift capacity to 59" (1.5m) height at bucket pivot pin, lbs (kg) 3450 (1606)
Breakout force at bucket pivot pin, lbs (kg) 4670 (2118)
