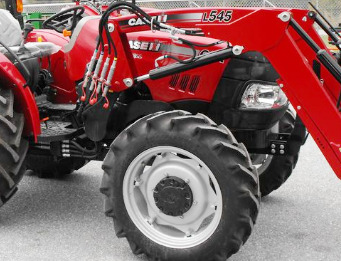

Case IH L545 Front End Loader

The Case IH L545 NSL/MSL loader is used for Case IH Farmall 50A, 60A, 70A tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The Case IH L545 NSL front end loader has a lifting capacity (at pivot pin) of 2780 lbs (1260 kg) to maximum height of 112" (2840 mm), and bucket's breakout force of 4630 lbs (2100 kg).

The bucket dump clearance is 79" (2000 mm) at maximum dump angle of 43 degrees. The Case IH L545 loader is compatible with a 73" (1850 mm) standard material bucket with a heaped capacity of 0.62 m3 (21.5 cu.ft), and 84" (2120 mm) standard material bucket with a heaped capacity of 0.71 m3 (24.9 cu.ft).

Compatible Tractors
Tractor Models Case IH Farmall 50A, 60A, 70A
Front Tires 9.5x24
Rear Tires 14.9x28
Hydraulic System Flow, gpm (lpm) 11.9 (45.1)

Loader
Loader Model Case IH L545 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1700 (775)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu.ft (m3) 17.1 (0.49)
Heaped Capacity, cu.ft (m3) 21.5 (0.62)
Weight, lb (kg) 401 (182)

84" Standard Material Bucket
Width, in (mm) 84 (2120)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 112 (2840)
Maximum lift height under level bucket, in (mm) 104 (2590)
Clearance with bucket dumped (NSL), in (mm) 79 (2000)
Clearance with bucket dumped (MSL), in (mm) 77 (1950)
Reach at maximum lift height (NSL), in (mm) 31 (800)
Reach at maximum lift height (MSL), in (mm) 30 (750)
Reach with bucket on ground level (NSL), in (mm) 77 (1960)
Reach with bucket on ground level (MSL), in (mm) 81 (2050)
Maximum dump angle (NSL), degrees 43
Maximum dump angle (MSL), degrees 50
Maximum rollback angle (NSL), degrees 27
Maximum rollback angle (MSL), degrees 46
Digging depth (NSL), in (mm) 4.7 (120)
Digging depth (MSL), in (mm) 4.3 (110)

Operating Data
Lift capacity to max height at pivot pin (NSL), lbs (kg) 2780 (1260)
Lift capacity to max height at pivot pin (MSL), lbs (kg) 2140 (970)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 1740 (790)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 2230 (1010)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 3260 (1480)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 2490 (1130)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2360 (1070)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 2710 (1230)
Breakout force at pivot pin (NSL), lbs (kg) 4630 (2100)
Breakout force at pivot pin (MSL), lbs (kg) 3680 (1670)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2300 (1043)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3280 (1490)
Bucket rollback force at max height (NSL), lbs (kg) 4035 (1830)
Bucket rollback force at max height (MSL), lbs (kg) 2535 (1150)
Bucket rollback force at ground level (NSL), lbs (kg) 3615 (1640)
Bucket rollback force at ground level (MSL), lbs (kg) 3330 (1510)

Cycle Times
Raising time to full height (NSL), sec 3,9
Raising time to full height (MSL), sec 3,3
Lowering time (NSL), sec 2,7
Lowering time (MSL), sec 1,6
Bucket dump time (NSL), sec 3,9
Bucket dump time (MSL), sec 2,9
Bucket rollback time (NSL), sec 2,7
Bucket rollback time (MSL), sec 2,9
