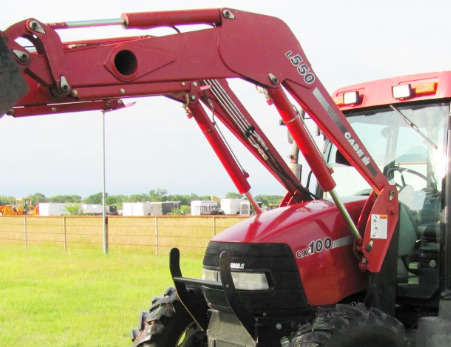

Case L550 Front End Loader

The Case IH L550 non self leveling or mechanical self leveling front-end loader is designed for Case IH Farmall 65C, 75C tractors. The loader has double acting lift and bucket hydraulic cylinders.

The loader has a maximum lift height of 119.3" (3030 mm) at pin and clearance with bucket dumped of 86.6" (2200 mm). The lift capacity is 2838 lbs (1290 kg) to max height at pin, and breakout force (bucket on ground) is 4730 lbs (2150 kg).

The estimated cycle times are 2.9 seconds raising to maximum height, and 2.6 seconds to full bucket dump. The Case IH L550 loader can be equipped with a 72" (1830 mm) heavy-duty material bucket with a heaped capacity of 21.4 cu.ft (0.62 m3), or 84" (2130 mm) standard material bucket with a heaped capacity of 24.9 cu.ft (0.71 m3).

Compatible Tractors
Tractor Models Case IH Farmall 65C, 75C
Front Tires 320/70R24
Rear Tires 480/70R28
Hydraulic System Flow, gpm (lpm) 12.8 (48.4)

Loader
Loader Model Case IH L550 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1300 (590)

Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)

Heavy-Duty Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, cu.ft (m3) 16.9 (0.49)
Heaped Capacity, cu.ft (m3) 21.4 (0.62)
Weight, lb (kg) 555 (252)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 119.3 (3030)
Maximum lift height under level bucket, in (mm) 109.8 (2790)
Clearance with bucket dumped, in (mm) 86.6 (2200)
Reach at maximum lift height, in (mm) 44.5 (1130)
Reach with bucket on ground level, in (mm) 86.2 (2190)
Maximum dump angle (NSL), degrees 52
Maximum dump angle (MSL), degrees 48
Maximum rollback angle, degrees 42
Digging depth, in (mm) 5.9 (150)

Operating Data
Lift capacity to max height at bucket pivot pin (NSL), lbs (kg) 2838 (1290)
Lift capacity to max height at bucket pivot pin (MSL), lbs (kg) 2244 (1020)
Lift capacity to max height at 31.5" (0.8m) forward of bucket pivot pin (NSL), lbs (kg) 1782 (810)
Lift capacity to max height at 31.5" (0.8m) forward of bucket pivot pin (MSL), lbs (kg) 2552 (1160)
Lift capacity to 59" (1.5m) height at bucket pivot pin (NSL), lbs (kg) 3542 (1610)
Lift capacity to 59" (1.5m) height at bucket pivot pin (MSL), lbs (kg) 2860 (1300)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of bucket pivot pin (NSL), lbs (kg) 2530 (1150)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of bucket pivot pin (MSL), lbs (kg) 2904 (1320)
Breakout force bucket at pivot pin (NSL), lbs (kg) 4730 (2150)
Breakout force bucket at pivot pin (MSL), lbs (kg) 3872 (1760)
Breakout force at 31.5" (0.8m) forward of bucket pivot pin (NSL), lbs (kg) 3190 (1450)
Breakout force at 31.5" (0.8m) forward of bucket pivot pin (MSL), lbs (kg) 3366 (1530)
Bucket rollback force at max height (NSL), lbs (kg) 3058 (1390)
Bucket rollback force at max height (MSL), lbs (kg) 2486 (1130)
Bucket rollback force at ground level (NSL), lbs (kg) 4136 (1880)
Bucket rollback force at ground level (MSL), lbs (kg) 3322 (1510)

Cycle Times
Raising time (NSL), sec 2.9
Raising time (MSL), sec 2.4
Lowering time (NSL), sec 2.2
Lowering time (MSL), sec 1.4
Dumping time (NSL), sec 2.6
Dumping time (MSL), sec 1.6
Rollback time (NSL), sec 2.1
Rollback time (MSL), sec 1.6
