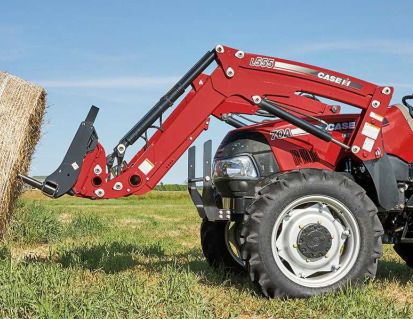

Case L555 Front End Loader

The Case IH L555 NSL or MSL front end loader is compatible with Case IH Farmall 50A, 60A, 70A tractors. The front end loader hydraulic system includes double-acting boom and bucket hydraulic cylinders.

The loader’s max lift height is 119" (3030 mm) at pin, and clearance with bucket dumped is 87" (2200 mm). The lift capacity is 3550 lbs (1610 kg) to full height at pin, and bucket's breakout force is 4890 lbs (2220 kg). The raising time is 4.7 seconds from ground level to maximum height, and bucket dumping time is 3.7 seconds.

The Case IH L555 loader is compatible with the following buckets: a 72" (1830 mm) standard material bucket with a heaped capacity of 21.3 cu.ft (0.61 m3), or 83" (2100 mm) standard material bucket with a heaped capacity of 24.7 cu.ft (0.70 m3).

Compatible Tractors
Tractor Models Case IH Farmall 50A, 60A, 70A
Front Tires 9.5x24
Rear Tires 14.9x28
Hydraulic System Flow, gpm (lpm) 11.9 (45.1)

Loader
Loader Model Case IH L555 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1700 (775)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.5 (0.55)
Heaped Capacity, cu.ft (m3) 24.7 (0.70)
Weight, lb (kg) 505 (230)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 119 (3030)
Maximum lift height under level bucket, in (mm) 109 (2770)
Clearance with bucket dumped (NSL), in (mm) 87 (2200)
Clearance with bucket dumped (MSL), in (mm) 85 (2150)
Reach at maximum lift height (NSL), in (mm) 29 (740)
Reach at maximum lift height (MSL), in (mm) 30 (750)
Reach with bucket on ground level, in (mm) 84 (2130)
Maximum dump angle (NSL), degrees 42
Maximum dump angle (MSL), degrees 49
Maximum rollback angle (NSL), degrees 27
Maximum rollback angle (MSL), degrees 46
Digging depth (NSL), in (mm) 5.9 (150)
Digging depth (MSL), in (mm) 5.5 (140)

Operating Data
Lift capacity to max height at pivot pin (NSL), lbs (kg) 3550 (1610)
Lift capacity to max height at pivot pin (MSL), lbs (kg) 2840 (1290)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2200 (1000)
Lift capacity to max height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3000 (1360)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 3880 (1760)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 3020 (1370)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2780 (1260)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3110 (1410)
Breakout force at pivot pin (NSL), lbs (kg) 4890 (2220)
Breakout force at pivot pin (MSL), lbs (kg) 3950 (1790)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3220 (1460)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3350 (1520)
Bucket rollback force at max height (NSL), lbs (kg) 4960 (2250)
Bucket rollback force at max height (MSL), lbs (kg) 2450 (1110)
Bucket rollback force at ground level (NSL), lbs (kg) 4430 (2010)
Bucket rollback force at ground level (MSL), lbs (kg) 3280 (1490)

Cycle Times
Loader Raise (NSL), sec 4,7
Loader Raise (MSL), sec 3,4
Loader Lower (NSL), sec 3,1
Loader Lower (MSL), sec 1,8
Bucket Dump (NSL), sec 3,7
Bucket Dump (MSL), sec 2,2
Bucket Rollback (NSL), sec 2,7
Bucket Rollback (MSL), sec 2,2
