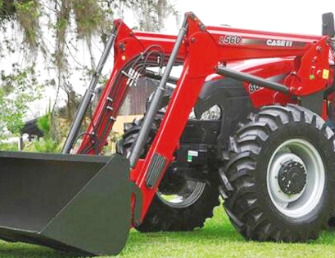

Case IH L560 Front End Loader
The
Case IH L560 non self leveling or mechanical self leveling loader is compatible
with Case IH Farmall 85C, 95C tractors. The front end loader has double acting
boom and bucket hydraulic cylinders. The Case IH L560 MSL loader has a lift
capacity (at pivot pin) of 2090 lbs (950 kg) to a maximum height of 129.1 in
(3280 mm) and breakout force of 3586 lbs (1630 kg) with bucket on ground.
A full dump clearance with a 47-degree maximum dump angle is 96.4 in
(2450 mm). The Case IH L560 loader is equipped with a 84" (2120 mm)
heavy-duty material bucket with a rated capacity of 0.72 m3 (24.9
cu.ft), and 72" (1820 mm) high volume bucket with a rated capacity of
0.94 m3 (32.9 cu.ft).
| Tractor Models |
Case IH Farmall 85C, 95C |
| Front Tires |
11.2x24 |
| Rear Tires |
16.9x30 |
| Hydraulic System Flow, gpm (lpm) |
16.1 (60.9) |
| Loader Model |
Case IH L560 NSL/MSL |
| Leveling System |
Non Self Leveling / Mechanical Self Leveling |
| Weight, lb (kg) |
1300 (590) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
84 (2130) |
| Struck Capacity, cu.ft (m3) |
19.8 (0.57) |
| Heaped Capacity, cu.ft (m3) |
24.9 (0.72) |
| Weight, lb (kg) |
630 (286) |
| Width, in (mm) |
72 (1820) |
| Struck Capacity, cu.ft (m3) |
27.3 (0.78) |
| Heaped Capacity, cu.ft (m3) |
32.9 (0.94) |
| Weight, lb (kg) |
510 (232) |
| Maximum lift height to bucket pivot pin, in (mm) |
129.1 (3280) |
| Maximum lift height under level bucket, in (mm) |
119.7 (3040) |
| Clearance with bucket dumped, in (mm) |
96.4 (2450) |
| Reach at maximum lift height, in (mm) |
35.4 (900) |
| Reach with bucket on ground level, in (mm) |
88.2 (2240) |
| Maximum dump angle, degrees |
47 |
| Maximum rollback angle, degrees |
45 |
| Digging depth, in (mm) |
6.3 (160) |
| Lift capacity to maximum height at pivot pin (NSL), lbs (kg) |
3168 (1440) |
| Lift capacity to maximum height at pivot pin (MSL), lbs (kg) |
2090 (950) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
2046 (930) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
2486 (1130) |
| Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) |
4004 (1820) |
| Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) |
2706 (1230) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
2948 (1340) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
2750 (1250) |
| Breakout force at pivot pin (NSL), lbs (kg) |
5214 (2370) |
| Breakout force at pivot pin (MSL), lbs (kg) |
3586 (1630) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
3564 (1620) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
3080 (1400) |
| Bucket rollback force at maximum height (NSL), lbs (kg) |
3146 (1430) |
| Bucket rollback force at maximum height (MSL), lbs (kg) |
3168 (1440) |
| Bucket rollback force at ground level (NSL), lbs (kg) |
4136 (1880) |
| Bucket rollback force at ground level (MSL), lbs (kg) |
4092 (1860) |
| Raising time (NSL), sec |
3.4 |
| Raising time (MSL), sec |
2.4 |
| Lowering time (NSL), sec |
2.3 |
| Lowering time (MSL), sec |
1.4 |
| Dump time (NSL), sec |
3.1 |
| Dump time (MSL), sec |
2.1 |
| Rollback time, sec |
2.1 |
