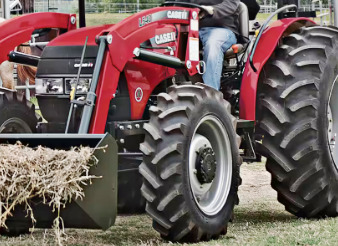

Case IH L565 Front End Loader

The Case IH L565 NSL/MSL loader is available for Case IH Farmall 65C, 75C tractors. The Case IH L565 loader has double acting hydraulic lifting and bucket cylinders. The non self leveling loader’s maximum lift height is 122 in (3090 mm) at pin, and clearance with bucket dumped is 89 in (2270 mm) at 50-degree max angle. The lifting capacity is 2960 lbs (1340 kg) at maximum height (bucket pin), and breakout force (bucket on ground) is 4730 lbs (2145 kg).

Compatible standard material buckets for the Case IH L565 front-end loader: 72" (1820 mm) bucket with a rated capacity of 0.61 m3 (21.3 cu.ft), and 83" (2100 mm) bucket with a rated capacity of 0.70 m3 (24.7 cu.ft).

Compatible Tractors
Tractor Models Case IH Farmall 65C, 75C
Front Tires 280/85 R24
Rear Tires 420/85 R30
Hydraulic System Flow, gpm (lpm) 12.8 (48.4)

Loader
Loader Model Case IH L565 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1700 (773)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.5 (0.55)
Heaped Capacity, cu.ft (m3) 24.7 (0.70)
Weight, lb (kg) 505 (230)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 122 (3090)
Maximum lift height under level bucket, in (mm) 113 (2860)
Clearance with bucket dumped, in (mm) 89 (2270)
Reach at maximum lift height, in (mm) 37 (950)
Reach with bucket on ground level, in (mm) 85 (2160)
Maximum dump angle, degrees 50
Maximum rollback angle, degrees 42
Digging depth, in (mm) 6.7 (170)

Operating Data
Lift capacity to maximum height at pivot pin (NSL), lbs (kg) 2960 (1340)
Lift capacity to maximum height at pivot pin (MSL), lbs (kg) 2340 (1060)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 1860 (844)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 2600 (1180)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 3600 (1630)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 2890 (1310)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2580 (1170)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 2990 (1355)
Breakout force at pivot pin (NSL), lbs (kg) 4730 (2145)
Breakout force at pivot pin (MSL), lbs (kg) 3850 (1745)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3100 (1400)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3380 (1530)
Bucket rollback force at maximum height (NSL), lbs (kg) 3046 (1380)
Bucket rollback force at maximum height (MSL), lbs (kg) 2475 (1120)
Bucket rollback force at ground level (NSL), lbs (kg) 4016 (1820)
Bucket rollback force at ground level (MSL), lbs (kg) 3200 (1450)

Cycle Times
Loader Raise (NSL), sec 4,7
Loader Raise (MSL), sec 3,4
Loader Lower (NSL), sec 3,1
Loader Lower (MSL), sec 1,8
Bucket Dump (NSL), sec 3,7
Bucket Dump (MSL), sec 2,2
Bucket Rollback (NSL), sec 2,7
Bucket Rollback (MSL), sec 2,2
