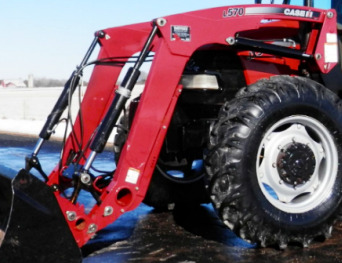

Case IH L570 Front End Loader

The Case IH L570 non self leveling or mechanical self leveling front end loader is designed for Case IH JX95, Farmall 85U, 95U tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The Case IH L570 MSL front end loader has a lift capacity (at bucket pin) of 2442 lbs (1110 kg) to a max height of 136.6" (3470 mm) and breakout force (bucket on ground) of 4026 lbs (1830 kg).

The clearance with a bucket dumped is 103.9" (2640 mm) at max dump angle of 49 degrees. The Case IH L570 loader is compatible with the following standard material buckets: a 72" (1820 mm) bucket with a heaped capacity of 0.61 m3 (21.3 cu.ft), and 84" (2130 mm) bucket with a heaped capacity of 0.71 m3 (24.9 cu.ft).

Compatible Tractors
Tractor Models Case IH JX95, Farmall 85U, 95U
Front Tires 440/65R24
Rear Tires 540/65R34
Hydraulic System Flow, gpm (lpm) 16.1 (60.9)

Loader
Loader Model Case IH L560 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1300 (590)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 136.6 (3470)
Maximum lift height under level bucket, in (mm) 127.2 (3230)
Clearance with bucket dumped, in (mm) 103.9 (2640)
Reach at maximum lift height, in (mm) 36.6 (930)
Reach with bucket on ground level, in (mm) 88.9 (2260)
Maximum dump angle, degrees 49
Maximum rollback angle, degrees 44
Digging depth, in (mm) 6.3 (160)

Operating Data
Lift capacity to maximum height at pivot pin (NSL), lbs (kg) 3630 (1650)
Lift capacity to maximum height at pivot pin (MSL), lbs (kg) 2442 (1110)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2882 (1310)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 2354 (1070)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 4510 (2050)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 3124 (1420)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3388 (1540)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3146 (1430)
Breakout force at pivot pin (NSL), lbs (kg) 5698 (2590)
Breakout force at pivot pin (MSL), lbs (kg) 4026 (1830)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3982 (1810)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3498 (1590)
Bucket rollback force at maximum height, lbs (kg) 4048 (1840)
Bucket rollback force at ground level (NSL), lbs (kg) 5148 (2340)
Bucket rollback force at ground level (MSL), lbs (kg) 5104 (2320)

Cycle Times
Raising time (NSL), sec 3.1
Raising time (MSL), sec 2.4
Lower time (NSL), sec 2.2
Lower time (MSL), sec 1.4
Dump time (NSL), sec 2.8
Dump time (MSL), sec 2.1
Rollback time, sec 2.1
