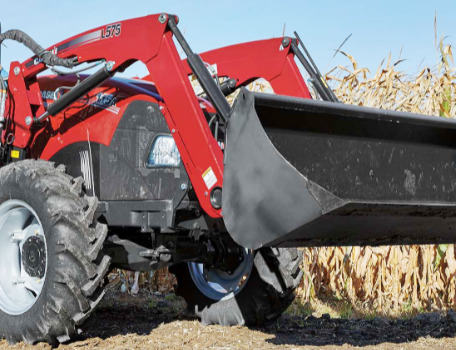

Case L575 Front End Loader

The Case IH L575 non self leveling or mechanical self leveling loader was designed for Case IH Farmall 90C, 100C, 110C, 120C tractors. The front end loader hydraulic system includes double-acting hydraulic lifting and bucket cylinders.

The front end loader has a lift capacity (at bucket pin) of 3320 lbs (1500 kg) to full height of 135" (3430 mm), and bucket's breakout force of 5055 lbs (2290 kg). A full dump clearance with a 52-degree maximum dump angle is 100" (2550 mm). The time to raise the boom is 4.5 seconds from ground line to maximum height, and bucket dumping time is 4.1 sec.

The Case IH L575 front-end loader can be equipped with the following buckets: a 72" (1830 mm) standard material bucket with a heaped capacity of 21.5 cu.ft (0.62 m3), or 83" (2100 mm) standard material bucket with a heaped capacity of 24.9 cu.ft (0.71 m3).

Compatible Tractors
Tractor Models Case IH Farmall 90C, 100C, 110C, 120C
Front Tires 14.9x24
Rear Tires 18.4x34
Hydraulic System Flow, gpm (lpm) 16.9 (60.6)

Loader
Loader Model Case IH L575 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1700 (775)

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 17.1 (0.49)
Heaped Capacity, cu.ft (m3) 21.5 (0.62)
Weight, lb (kg) 401 (182)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)


Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 135 (3430)
Maximum lift height under level bucket, in (mm) 124 (3140)
Clearance with bucket dumped, in (mm) 100 (2550)
Reach at maximum lift height, in (mm) 35 (900)
Reach with bucket on ground level, in (mm) 86 (2180)
Maximum dump angle, degrees 52
Maximum rollback angle, degrees 41
Digging depth, in (mm) 6.3 (160)

Operating Data
Lift capacity to maximum height at pivot pin (NSL), lbs (kg) 3320 (1500)
Lift capacity to maximum height at pivot pin (MSL), lbs (kg) 2690 (1220)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2076 (940)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3240 (1470)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 4025 (1825)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 3290 (1490)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2930 (1330)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3330 (1510)
Breakout force at pivot pin (NSL), lbs (kg) 5055 (2290)
Breakout force at pivot pin (MSL), lbs (kg) 4180 (1900)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3435 (1560)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3550 (1610)
Bucket rollback force at maximum height (NSL), lbs (kg) 3040 (1380)
Bucket rollback force at maximum height (MSL), lbs (kg) 3060 (1390)
Bucket rollback force at ground level (NSL), lbs (kg) 4090 (1855)
Bucket rollback force at ground level (MSL), lbs (kg) 4055 (1840)

Cycle Times
Raising time (NSL), sec 4,5
Raising time (MSL), sec 3,9
Lowering time (NSL), sec 3,0
Lowering time (MSL), sec 2,5
Dumping time (NSL), sec 4,1
Dumping time (MSL), sec 2,8
Rollback time, sec 2,8
