Case L730 Front End Loader
The

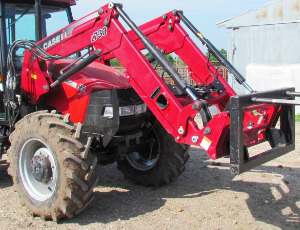

Case IH L730 loader is fitted to Case IH JX1080U, JX1090U, and JX1100U tractors.
The front end loader has double acting hydraulic boom and bucket cylinders.
The Case IH L730 loader has a lift capacity (at pivot pin) of 3850 lbs
(1746 kg) to a max height of 136" (3450 mm), and breakout force of 4775
lbs (2170 kg). A full dump clearance with a 57-degree maximum dump angle
is 98" (2430 mm). The estimated cycle times are 4.1 seconds lifting to
maximum height, and 3.5 seconds to full bucket dump.
Compatible buckets for the Case IH L730 loader: a 73" (1850 mm) standard
material bucket with a rated capacity of 21.5 cu.ft (0.62 cu.m), and 83"
(2100 mm) standard material bucket with a rated capacity of 24.7 cu.ft
(0.70 cu.m).
| Tractor Models |
Case IH JX1080U, JX1090U, JX1100U |
| Front Tires |
380/70R24 |
| Rear Tires |
480/70R34 |
| Hydraulic System Flow, gpm (lpm) |
14.5 (54.9) |
| Loader Model |
Case IH L730 NSL |
| Leveling System |
Non Self Leveling |
| Weight, lb (kg) |
990 (449) |
| 73" Standard Material Bucket |
| Width, in (mm) |
73 (1850) |
| Struck Capacity, cu.ft (m3) |
17.1 (0.49) |
| Heaped Capacity, cu.ft (m3) |
21.5 (0.62) |
| Weight, lb (kg) |
465 (210) |
| 83" Standard Material Bucket |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.ft (m3) |
19.5 (0.55) |
| Heaped Capacity, cu.ft (m3) |
24.7 (0.70) |
| Weight, lb (kg) |
510 (230) |
| Maximum lift height to bucket pivot pin, in (mm) |
136 (3450) |
| Maximum lift height under level bucket, in (mm) |
124 (3070) |
| Clearance with bucket dumped, in (mm) |
98 (2430) |
| Reach at maximum lift height, in (mm) |
33 (830) |
| Maximum dump angle, degrees |
57 |
| Reach with bucket on ground level, in (mm) |
90 (2280) |
| Maximum rollback angle, degrees |
46 |
| Digging Depth, in (mm) |
5 (127) |
| Lift Capacity to max. height at 31.5" (800 mm) forward of bucket pivot pin, lbs (kg) |
2500 (1134) |
| Lift Capacity to maximum height at bucket pivot pin, lbs (kg) |
3850 (1746) |
| Breakout force at bucket pivot pin, lbs (kg) |
4775 (2170) |
| Breakout force at 31.5" (800 mm) forward of bucket pivot pin, lbs (kg) |
3100 (1406) |
| Raise time to full height, sec |
4,1 |
| Lower time, sec |
2,8 |
| Bucket dump time, sec |
3,5 |
| Bucket Rollback, sec |
2,4 |
