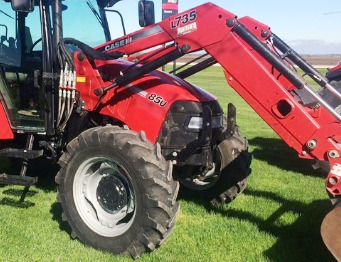

Case IH L735 Front End Loader

The Case IH L735 NSL/MSL loader fits Case IH Farmall 70, 80, Farmall 85U, 95U, 105U tractors. The loader has double acting bucket and lift hydraulic cylinders. The Case IH L735 NSL front-end loader has a max lift height of 135" (3430 mm) at pin and bucket dump clearance of 96.9" (2460 mm). The lift capacity is 4034 lbs (1830 kg) to max height at pin, and boom breakout force is 4960 lbs (2250 kg).

The Case IH L735 loader is equipped with the following standard material buckets: a 63" (1600 mm) bucket with a rated capacity of 0.53 m3 (18.6 cu.ft), 73" (1850 mm) bucket with a rated capacity of 0.62 m3 (21.5 cu.ft), or 83" (2100 mm) bucket with a rated capacity of 0.70 m3 (24.7 cu.ft).

Compatible Tractors
Tractor Models Case IH Farmall 70, 80, Farmall 85U, 95U, 105U
Front Tires 440/65R24
Rear Tires 540/65R34
Hydraulic System Flow, gpm (lpm) 21.0 (79.0)

Loader
Loader Model Case IH L735 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 3054 (1390)

63" Standard Material Bucket
Width, in (mm) 63 (1600)
Struck Capacity, cu.ft (m3) 14.7 (0.42)
Heaped Capacity, cu.ft (m3) 18.6 (0.53)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu.ft (m3) 17.1 (0.49)
Heaped Capacity, cu.ft (m3) 21.5 (0.62)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.5 (0.55)
Heaped Capacity, cu.ft (m3) 24.7 (0.70)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 135 (3430)
Maximum lift height under level bucket, in (mm) 122.8 (3120)
Clearance with bucket dumped, in (mm) 96.9 (2460)
Reach at maximum lift height, in (mm) 25.2 (640)
Reach with bucket on ground level, in (mm) 94.1 (2390)
Maximum dump angle, degrees 54
Maximum rollback angle, degrees 48
Digging depth, in (mm) 6.3 (160)

Operating Data
Lift capacity to maximum height at pivot pin (NSL), lbs (kg) 4034 (1830)
Lift capacity to maximum height at pivot pin (MSL), lbs (kg) 3329 (1510)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2844 (1290)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 2954 (1340)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 4255 (1930)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 3505 (1590)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2690 (1220)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3153 (1430)
Breakout force at pivot pin (NSL), lbs (kg) 4960 (2250)
Breakout force at pivot pin (MSL), lbs (kg) 4123 (1870)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2976 (1350)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3285 (1490)
Bucket rollback force at maximum height (NSL), lbs (kg) 3471 (1550)
Bucket rollback force at maximum height (MSL), lbs (kg) 3461 (1570)
Bucket rollback force at ground level (NSL), lbs (kg) 5181 (2340)
Bucket rollback force at ground level (MSL), lbs (kg) 5093 (2310)

Cycle Times
Loader Raise (NSL), sec 3,6
Loader Raise (MSL), sec 3,1
Loader Lower (NSL), sec 2,4
Loader Lower (MSL), sec 2,1
Bucket Dump (NSL), sec 4,4
Bucket Dump (MSL), sec 2,7
Bucket Rollback (NSL), sec 3,2
Bucket Rollback (MSL), sec 2,7
