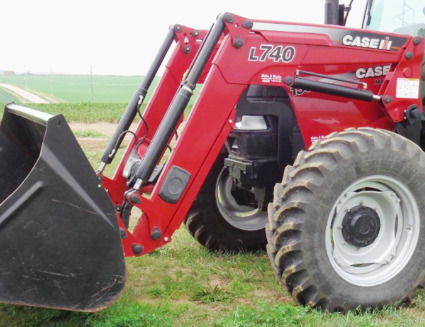

Case L740 Front End Loader
The
Case IH L740 non self leveling front-end loader was designed for Case IH Maxxum
PRO 110, 120, 130 tractors. The loader has double acting bucket and lift
hydraulic cylinders.
The loader has a lifting capacity (at bucket pin) of 5080 lbs (2304 kg)
to full height of 145" (3680 mm) and breakout force of 4060 lbs (1842
kg) at 31.5" (0.8m) from pivot pin. The bucket dump clearance with a
63-degree max dump angle is 107" (2710 mm).
The boom raising time is 3.1 sec from ground level to maximum height,
and bucket dump time is 2.6 seconds. The Case IH L740 loader is
compatible with a 83" (2100 mm) standard material bucket with a heaped
capacity of 24.7 cu.ft (0.70 m3), or 79" (2000 mm) high volume bucket
with a heaped capacity of 35.7 cu.ft (1.02 m3).
| Tractor Models |
Case IH Maxxum PRO 110, 120, 130 |
| Front Tires |
14.9R28 |
| Rear Tires |
18.4R38 |
| Hydraulic System Flow, gpm (lpm) |
26.0 (100.3) |
| Loader Model |
Case IH L740 NSL |
| Leveling System |
Non Self Leveling |
| Weight, lb (kg) |
1135 (515) |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.ft (m3) |
19.5 (0.55) |
| Heaped Capacity, cu.ft (m3) |
24.7 (0.70) |
| Weight, lb (kg) |
510 (230) |
| Width, in (mm) |
79 (2000) |
| Struck Capacity, cu.ft (m3) |
29.5 (0.84) |
| Heaped Capacity, cu.ft (m3) |
35.7 (1.02) |
| Weight, lb (kg) |
540 (245) |
| Maximum lift height to bucket pivot pin, in (mm) |
145 (3680) |
| Maximum lift height under level bucket, in (mm) |
133 (3370) |
| Clearance with bucket dumped, in (mm) |
107 (2710) |
| Reach at maximum lift height, in (mm) |
31 (780) |
| Maximum dump angle, degrees |
63 |
| Reach with bucket on ground level, in (mm) |
92 (2330) |
| Maximum rollback angle, degrees |
43 |
| Digging depth, in (mm) |
8 (203) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
5080 (2304) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin, lbs (kg) |
3370 (1529) |
| Breakout force at 31.5" (0.8m) forward of pivot pin, lbs (kg) |
4060 (1842) |
| Raise time to full height, sec |
3,1 |
| Lower time, sec |
2,3 |
| Bucket dump time, sec |
2,6 |
| Bucket rollback time, sec |
2,1 |
