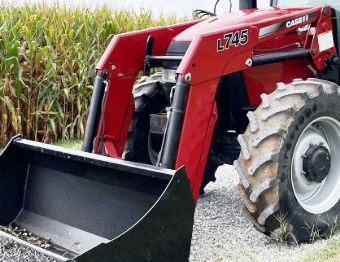

Case IH L745 Front End Loader
The
Case IH L745 non self leveling or mechanical self leveling loader is used for
Case IH Maxxum 110, 120, 130 tractors. The loader hydraulic system includes
double-acting bucket and lift hydraulic cylinders. The Case IH L745 NSL front
end loader has a lifting capacity (at pivot pin) of 5093 lbs (2310 kg) to
maximum height of 146.8 in (3730 mm), and bucket's breakout force of 6239 lbs
(2830 kg).
The bucket dump clearance is 109 in (2770 mm) at maximum dump angle of
61 degrees. The Case IH L745 loader is compatible with a 73" (1850 mm)
standard material bucket with a rated capacity of 0.61 m3 (21.3 cu.ft),
83" (2100 mm) standard material bucket with a rated capacity of 0.71 m3
(24.9 cu.ft), and 95" (2400 mm) standard material bucket with a rated
capacity of 0.82 m3 (28.6 cu.ft).
| Tractor Models |
Case IH Maxxum 110, 120, 130 |
| Front Tires |
14.9R28 |
| Rear Tires |
18.4R38 |
| Hydraulic System Flow, gpm (lpm) |
26.0 (100.3) |
| Loader Model |
Case IH L745 NSL/MSL |
| Leveling System |
Non Self Leveling / Mechanical Self Leveling |
| Weight, lb (kg) |
1135 (515) |
| 73" Standard Material Bucket |
| Width, in (mm) |
73 (1850) |
| Struck Capacity, cu.ft (m3) |
16.9 (0.48) |
| Heaped Capacity, cu.ft (m3) |
21.3 (0.61) |
| Weight, lb (kg) |
455 (207) |
| 83" Standard Material Bucket |
| Width, in (mm) |
83 (2100) |
| Struck Capacity, cu.ft (m3) |
19.7 (0.56) |
| Heaped Capacity, cu.ft (m3) |
24.9 (0.71) |
| Weight, lb (kg) |
520 (236) |
| 95" Standard Material Bucket |
| Width, in (mm) |
95 (2400) |
| Struck Capacity, cu.ft (m3) |
22.5 (0.64) |
| Heaped Capacity, cu.ft (m3) |
28.6 (0.82) |
| Weight, lb (kg) |
580 (264) |
| Maximum lift height to bucket pivot pin, in (mm) |
146.8 (3730) |
| Maximum lift height under level bucket, in (mm) |
135 (3430) |
| Clearance with bucket dumped, in (mm) |
109 (2770) |
| Reach at maximum lift height, in (mm) |
31.9 (810) |
| Reach with bucket on ground level, in (mm) |
91.7 (2330) |
| Maximum dump angle, degrees |
61 |
| Maximum rollback angle, degrees |
42 |
| Digging depth, in (mm) |
5.9 (150) |
| Lift capacity to maximum height at pivot pin (NSL), lbs (kg) |
5093 (2310) |
| Lift capacity to maximum height at pivot pin (MSL), lbs (kg) |
4321 (1960) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
3616 (1640) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
3814 (1730) |
| Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) |
5401 (2450) |
| Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) |
4607 (2090) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
3461 (1570) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
3850 (1750) |
| Breakout force at pivot pin (NSL), lbs (kg) |
6239 (2830) |
| Breakout force at pivot pin (MSL), lbs (kg) |
5335 (2420) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
3858 (1750) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
4254 (1930) |
| Bucket rollback force at maximum height (NSL), lbs (kg) |
4254 (1930) |
| Bucket rollback force at maximum height (MSL), lbs (kg) |
4180 (1960) |
| Bucket rollback force at ground level (NSL), lbs (kg) |
6217 (2820) |
| Bucket rollback force at ground level (MSL), lbs (kg) |
6173 (2800) |
| Raising time (NSL), sec |
3,1 |
| Raising time (MSL), sec |
2,6 |
| Lowering time (NSL), sec |
2,3 |
| Lowering time (MSL), sec |
1,9 |
| Dumping time (NSL), sec |
3,4 |
| Dumping time (MSL), sec |
2,1 |
| Rollback time (NSL), sec |
2,6 |
| Rollback time (MSL), sec |
2,1 |
