Case L750 Front End Loader

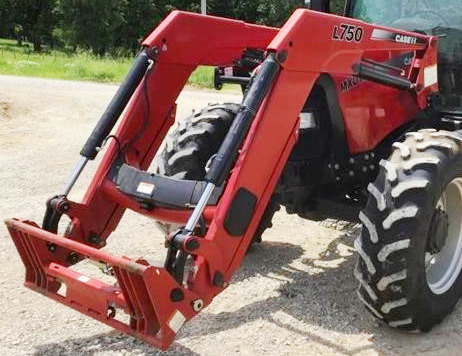

The Case IH L750 NSL front end loader fits Case IH Maxxum PRO 115, 125, 140 tractors. The loader hydraulic system includes double-acting hydraulic lift and bucket cylinders.

The loader has a maximum lift height of 154" (3910 mm) at pin and bucket dump clearance of 116" (2940 mm). The lifting capacity is 5350 lbs (2427 kg) at full height (pivot pin), and bucket's breakout force is 4400 lbs (1996 kg) at 31.5" (0.8m) forward of pivot pin.

The estimated cycle times are 3.5 seconds lifting to maximum height, and 2.6 seconds full bucket dumping. The Case IH L750 loader is equipped with a 83" (2100 mm) heavy-duty material bucket with a heaped capacity of 24.9 cu.ft (0.72 m3), or 95" (2420 mm) high volume bucket with a heaped capacity of 44.2 cu.ft (1.26 m3).

Compatible Tractors
Tractor Models Case IH Maxxum PRO 115, 125, 140
Front Tires 14.9x28
Rear Tires 18.4x38
Hydraulic System Flow, gpm (lpm) 26.0 (100.3)

Loader
Loader Model Case IH L750 NSL
Leveling System Non Self Leveling
Weight, lb (kg) 1220 (553)

Heavy-Duty Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.8 (0.57)
Heaped Capacity, cu.ft (m3) 24.9 (0.72)
Weight, lb (kg) 630 (286)

High Volume Bucket
Width, in (mm) 95 (2420)
Struck Capacity, cu.ft (m3) 36.3 (1.04)
Heaped Capacity, cu.ft (m3) 44.2 (1.26)
Weight, lb (kg) 635 (290)


Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 154 (3910)
Maximum lift height under level bucket, in (mm) 142 (3600)
Clearance with bucket dumped, in (mm) 116 (2940)
Reach at maximum lift height, in (mm) 31 (780)
Maximum dump angle, degrees 57
Reach with bucket on ground level, in (mm) 100 (2540)
Maximum rollback angle, degrees 45
Digging depth, in (mm) 8 (203)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 5350 (2427)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 3700 (1678)
Breakout force at 31.5" (0.8m) forward of pivot pin, lbs (kg) 4400 (1996)

Cycle Times
Raise time to full height, sec 3,5
Lower time, sec 2,7
Bucket dump time, sec 2,6
Bucket rollback time, sec 2,1
