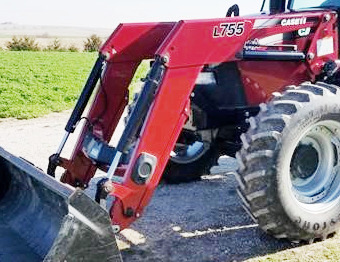

Case IH L755 Front End Loader

The Case IH L755 NSL/MSL loader is compatible with Case IH Maxxum 115, 125, 140, Case IH Puma 125, 130 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The Case IH L755 MSL loader has a lift capacity (at pivot pin) of 4806 lbs (2180 kg) to a maximum height of 157.1" (3990 mm) and breakout force of 5005 lbs (2270 kg) with bucket on ground.

A full dump clearance with a 55-degree maximum dump angle is 119.3" (3030 mm). The rated cycle times are 6.6 seconds raising to maximum height, and 5.4 seconds full bucket dumping. The Case IH L755 loader is equipped with 83" (2100 mm), 95" (2400 mm), or 102" (2580 mm) standard material buckets with rated capacities of 0.71 m3 (24.9 cu.ft), 0.82 m3 (28.6 cu.ft), or 1.03 m3 (36.1 cu.ft).

Compatible Tractors
Tractor Models Case IH Maxxum 115, 125, 140, Case IH Puma 125, 130
Front Tires 14.9R28
Rear Tires 18.4R38
Hydraulic System Flow, gpm (lpm) 26.0 (100.3)

Loader
Loader Model Case IH L755 NSL/MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1221 (555)

83" Heavy-Duty Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.8 (0.57)
Heaped Capacity, cu.ft (m3) 24.9 (0.72)
Weight, lb (kg) 630 (286)

95" Heavy-Duty Material Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 22.6 (0.65)
Heaped Capacity, cu.ft (m3) 28.7 (0.83)
Weight, lb (kg) 710 (323)

102" Heavy-Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 875 (398)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 157.1 (3990)
Maximum lift height under level bucket, in (mm) 145.3 (3690)
Clearance with bucket dumped, in (mm) 157.1 (3990)
Reach at maximum lift height, in (mm) 28.3 (720)
Reach with bucket on ground level, in (mm) 100.8 (2560)
Maximum dump angle, degrees 55
Maximum rollback angle, degrees 45
Digging depth, in (mm) 5.5 (140)

Operating Data
Lift capacity to maximum height at pivot pin (NSL), lbs (kg) 4872 (2210)
Lift capacity to maximum height at pivot pin (MSL), lbs (kg) 4806 (2180)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3527 (1600)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 4189 (1900)
Lift capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 5093 (2310)
Lift capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 5027 (2280)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3351 (1520)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 4464 (2070)
Breakout force at pivot pin (NSL), lbs (kg) 5820 (2640)
Breakout force at pivot pin (MSL), lbs (kg) 5005 (2270)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3704 (1680)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 4784 (1870)
Bucket rollback force at maximum height (NSL), lbs (kg) 3660 (1660)
Bucket rollback force at maximum height (MSL), lbs (kg) 5115 (2320)
Bucket rollback force at ground level (NSL), lbs (kg) 4643 (2560)
Bucket rollback force at ground level (MSL), lbs (kg) 7650 (3470)

Cycle Times
Raise time, sec 6,6
Lower time, sec 5,1
Dump time (NSL), sec 6,6
Dump time (MSL), sec 5,4
Rollback time (NSL), sec 5,1
Rollback time (MSL), sec 5,4
