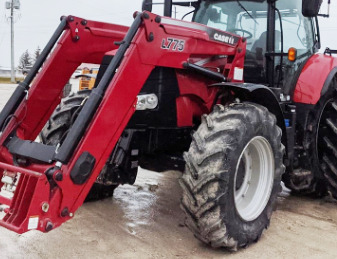

Case IH L775 Front End Loader

The Case IH L775 MSL loader is available for Case IH Puma 200, 215 tractors. The Case IH L775 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 178.3" (4530 mm) at pin and clearance with bucket dumped is 140.2" (3560 mm). The lifting capacity is 6195 lbs (2810 kg) at maximum height (bucket pin), and breakout force is 7253 lbs (3290 kg) with bucket on ground).

The raising time is 3.9 sec from ground line to max height, and bucket dumping time is 2.5 sec. Compatible high volume buckets for the Case IH L775 front-end loader: 87" (2200 mm) bucket with a rated capacity of 1.23 m3 (43.1 cu.ft), 95" (2420 mm) bucket with a rated capacity of 1.69 m3 (59.2 cu.ft), or 102" (2580 mm) bucket with a rated capacity of 1.84 m3 (64.4 cu.ft).

Compatible Tractors
Tractor Models Case IH Puma 200, 215
Front Tires 420/85R30
Rear Tires 520/85R42
Hydraulic System Flow, gpm (lpm) 32.0 (120.0)

Loader
Loader Model Case IH L775 MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 1672 (760)

87" High Volume Bucket
Width, in (mm) 87 (2200)
Struck Capacity, cu.ft (m3) 37.1 (1.06)
Heaped Capacity, cu.ft (m3) 43.1 (1.23)
Weight, lb (kg) 650 (295)

95" High Volume Bucket
Width, in (mm) 95 (2420)
Struck Capacity, cu.ft (m3) 49.4 (1.41)
Heaped Capacity, cu.ft (m3) 59.2 (1.69)
Weight, lb (kg) 913 (415)

102" High Volume Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 53.6 (1.53)
Heaped Capacity, cu.ft (m3) 64.4 (1.84)
Weight, lb (kg) 979 (445)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 178.3 (4530)
Maximum lift height under level bucket, in (mm) 166.1 (4220)
Clearance with bucket dumped, in (mm) 140.2 (3560)
Reach at maximum lift height, in (mm) 32.3 (820)
Reach with bucket on ground level, in (mm) 112.9 (2870)
Maximum dump angle, degrees 52
Maximum rollback angle, degrees 43
Digging depth, in (mm) 6.3 (160)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 6195 (2810)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 5490 (2490)
Lift capacity to 59" (1.5m) height at pivot pin, lbs (kg) 6438 (2920)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 5948 (2698)
Breakout force at pivot pin, lbs (kg) 7253 (3290)
Breakout force at 31.5" (0.8m) forward of pivot pin, lbs (kg) 6217 (2820)
Bucket rollback force at maximum height, lbs (kg) 6438 (2920)
Bucket rollback force at ground level, lbs (kg) 9634 (4370)

Cycle Times
Raise time to full height, sec 3,9
Lower time, sec 2,8
Bucket dump time, sec 2,5
Bucket rollback time, sec 2,5
