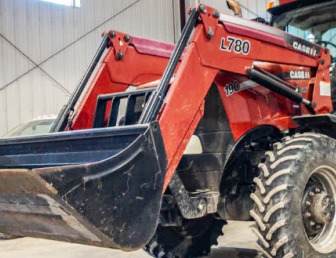

Case IH L780 Front End Loader

The Case IH L780 NSL front end loader is designed for Case IH Magnum 190, 210, 225 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The Case IH L780 front end loader has a lift capacity (at bucket pin) of 5950 lbs (2699 kg) to a max height of 187" (4740 mm) and breakout force (bucket on ground) of 7000 lbs (3175 kg) at 31.5" (0.8m) forward of bucket pin.

The clearance with a bucket dumped is 150" (3810 mm) at a max dump angle of 57 degrees. The estimated cycle times are 3.4 seconds lifting to max height, and 1.8 seconds maximum bucket dumping. The Case IH L780 loader is compatible with the following heavy-duty material buckets: a 95" (2420 mm) bucket with a rated capacity of 0.83 m3 (28.7 cu.ft), or 102" (2580 mm) bucket with a rated capacity of 1.03 m3 (36.1 cu.ft).

Compatible Tractors
Tractor Models Case IH Magnum 190, 210, 225
Front Tires 380/85R34
Rear Tires 480/80R46
Hydraulic System Flow, gpm (lpm) 32.0 (120.0)

Loader
Loader Model Case IH L780 NSL
Leveling System Non Self Leveling
Weight, lb (kg) 1780 (807)

95" Heavy-Duty Material Bucket
Width, in (mm) 95 (2420)
Struck Capacity, cu.ft (m3) 22.6 (0.65)
Heaped Capacity, cu.ft (m3) 28.7 (0.83)
Weight, lb (kg) 816 (370)

102" Heavy-Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 875 (400)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 187 (4740)
Maximum lift height under level bucket, in (mm) 175 (4440)
Clearance with bucket dumped, in (mm) 187 (4740)
Reach at maximum lift height, in (mm) 7 (177)
Maximum dump angle, degrees 57
Reach with bucket on ground level, in (mm) 109 (2760)
Maximum rollback angle, degrees 38
Digging depth, in (mm) 6 (152)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 5950 (2699)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 5250 (2381)
Breakout force at 31.5" (0.8m) forward of pivot pin, lbs (kg) 7000 (3175)

Cycle Times
Raise time to full height, sec 3,4
Lower time, sec 2,7
Bucket dump time, sec 1,8
Bucket rollback time, sec 1,8
