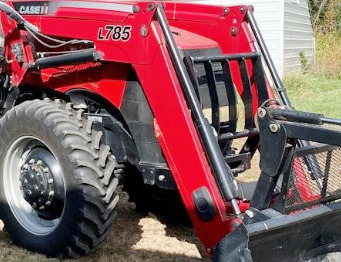

Case IH L785 Front End Loader

The Case IH L785 mechanical self leveling loader fits Case IH Magnum 180, 190, 210 tractors. The loader has double acting bucket and lift hydraulic cylinders. The Case IH L785 front-end loader has a max lift height of 191.7 in (4870 mm) at pin and bucket dump clearance of 153.5 in (3900 mm). The lift capacity is 7077 lbs (3210 kg) to max height at pin, and boom breakout force is 8885 lbs (4030 kg).

The rated cycle times are 4.8 seconds raising to max height, and 2.5 seconds max bucket dumping. The Case IH L785 loader is equipped with the following grapple buckets: a 95" (2400 mm) bucket with a heaped capacity of 0.94 m3 (32.9 cu.ft), and 102" (2580 mm) bucket with a heaped capacity of 1.03 m3 (36 cu.ft).

Compatible Tractors
Tractor Models Case IH Magnum 180, 190, 210
Front Tires 380/85R34
Rear Tires 480/80R46
Hydraulic System Flow, gpm (lpm) 32.0 (120.0)

Loader
Loader Model Case IH L785 MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 1843 (840)

95" Grapple Bucket
Width, in (mm) 95 (2400)
Struck Capacity, cu.ft (m3) 27.3 (0.78)
Heaped Capacity, cu.ft (m3) 32.9 (0.94)
Weight, lb (kg) 1323 (600)

102" Grapple Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.0 (1.03)
Weight, lb (kg) 1477 (670)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 191.7 (4870)
Maximum lift height under level bucket, in (mm) 179.5 (4560)
Clearance with bucket dumped, in (mm) 153.5 (3900)
Reach at maximum lift height, in (mm) 29.9 (760)
Reach with bucket on ground level, in (mm) 116.9 (2970)
Maximum dump angle, degrees 55
Maximum rollback angle, degrees 41
Digging depth, in (mm) 11.4 (290)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 7077 (3210)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 6592 (2990)
Lift capacity to 59" (1.5m) height at pivot pin, lbs (kg) 7694 (3490)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 7033 (3190)
Breakout force at pivot pin, lbs (kg) 8885 (4030)
Breakout force at 31.5" (0.8m) forward of pivot pin, lbs (kg) 7546 (3430)
Bucket rollback force at maximum height, lbs (kg) 6657 (3020)
Bucket rollback force at ground level, lbs (kg) 10075 (4570)

Cycle Times
Raise time to full height, sec 4,8
Lower time, sec 3,5
Bucket dump time, sec 2,5
Bucket rollback time, sec 2,7
