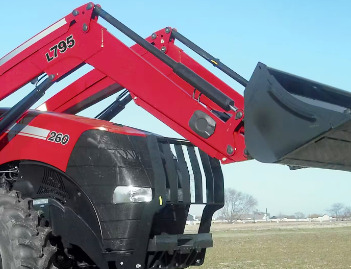

Case IH L795 Front End Loader

The Case IH L795 MSL loader is used for Case IH Magnum 235, 260, 290, 315 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The Case IH L795 front end loader has a lifting capacity (at pivot pin) of 6967 lbs (3160 kg) to maximum height of 196.9" (4910 mm), and bucket's breakout force of 9987 lbs (4530 kg). The bucket dump clearance is 153.9" (3910 mm) at maximum dump angle of 50 degrees.

The rated cycle times are 3.6 seconds lifting to maximum height, and 2.1 seconds to full bucket dump. The Case IH L795 loader is compatible with 95" (2420 mm) and 102" (2580 mm) heavy-duty material buckets with rated capacities of 0.83 m3 (28.7 cu.ft) and 1.03 m3 (36.1 cu.ft), or 95" (2420 mm) and 102" (2580 mm) grapple buckets with rated capacities of 0.94 m3 (32.9 cu.ft) and 1.03 m3 (36 cu.ft).

Compatible Tractors
Tractor Models Case IH Magnum 235, 260, 290, 315
Front Tires 420/90R34
Rear Tires 480/80R50
Hydraulic System Flow, gpm (lpm) 44.0 (166.0)

Loader
Loader Model Case IH L795 MSL
Leveling System Mechanical Self Leveling
Weight, lb (kg) 2061 (937)

95" Heavy-Duty Material Bucket
Width, in (mm) 95 (2420)
Struck Capacity, cu.ft (m3) 22.6 (0.65)
Heaped Capacity, cu.ft (m3) 28.7 (0.83)
Weight, lb (kg) 816 (370)

102" Heavy-Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 875 (400)

95" Grapple Bucket
Width, in (mm) 95 (2420)
Struck Capacity, cu.ft (m3) 27.3 (0.78)
Heaped Capacity, cu.ft (m3) 32.9 (0.94)
Weight, lb (kg) 1323 (600)

102" Grapple Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.0 (1.03)
Weight, lb (kg) 1477 (670)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 196.9 (4910)
Maximum lift height under level bucket, in (mm) 181 (4600)
Clearance with bucket dumped, in (mm) 153.9 (3910)
Reach at maximum lift height, in (mm) 15.4 (390)
Reach with bucket on ground level, in (mm) 124 (3150)
Maximum dump angle, degrees 50
Maximum rollback angle, degrees 43
Digging depth, in (mm) 7.9 (240)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 6967 (3160)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 6504 (2950)
Lift capacity to 59" (1.5m) height at pivot pin, lbs (kg) 8532 (3870)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin, lbs (kg) 7822 (3530)
Breakout force at pivot pin, lbs (kg) 9987 (4530)
Breakout force at 31.5" (0.8m) forward of pivot pin, lbs (kg) 8554 (3880)
Bucket rollback force at maximum height, lbs (kg) 7915 (3590)
Bucket rollback force at ground level, lbs (kg) 10560 (4790)

Cycle Times
Raise time to full height, sec 3,6
Lower time, sec 2,7
Bucket dump time, sec 2,1
