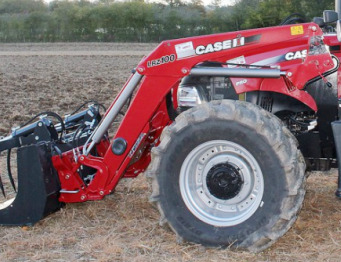

Case IH LRZ 100 Front End Loader
The
Case IH LRZ 100 NSL/MSL loader is available for Case IH Farmall 95U, Maxxum 110
tractors. The Case IH LRZ 100 loader has double acting hydraulic lifting and
bucket cylinders. The loader’s maximum lift height is 147.8" (3740 mm) at pin
and clearance with bucket dumped is 106.3" (2690 mm).
The lifting capacity is 4180 lbs (1900 kg) at maximum height (bucket
pin), and breakout force is 5588 lbs (2540 kg) with bucket on ground.
Compatible buckets for the Case IH LRZ100 front-end loader: 78" (1980
mm) standard material bucket with a heaped capacity of 0.66 m3 (23.1
cu.ft), and 84" (2130 mm) standard material bucket with a heaped
capacity of 0.71 m3 (24.9 cu.ft).
| Tractor Models |
Case IH Farmall 95U, Maxxum 110 |
| Tractor Power Range, Hp (kW) |
70-110 (51-81) |
| Hydraulic Pressure, bar (psi) |
180 (2600) |
| Hydraulic System Flow, gpm (lpm) |
15.0 (57.0) |
| Loader Model |
Case IH LRZ 100 |
| Leveling System |
Non Self Leveling (NSL) / Mechanical Self Leveling (MSL) |
| Weight w/o Bucket (NSL), lbs (kg) |
935 (425) |
| Weight w/o Bucket (MSL), lbs (kg) |
1045 (475) |
| 78" Standard Material Bucket |
| Width, in (mm) |
78 (1980) |
| Struck Capacity, cu.ft (m3) |
18.3 (0.52) |
| Heaped Capacity, cu.ft (m3) |
23.1 (0.66) |
| Weight, lbs (kg) |
485 (220) |
| 84" Standard Material Bucket |
| Width, in (mm) |
84 (2130) |
| Struck Capacity, cu.ft (m3) |
19.7 (0.56) |
| Heaped Capacity, cu.ft (m3) |
24.9 (0.71) |
| Weight, lbs (kg) |
520 (236) |
| Maximum Lift Height To Bucket Pivot Pin, in (mm) |
147.8 (3740) |
| Maximum Lift Height Under Level Bucket, in (mm) |
139.5 (3530) |
| Clearance With Bucket Dumped, in (mm) |
106.3 (2690) |
| Reach At Maximum Lift Height, in (mm) |
27.7 (700) |
| Maximum Dump Angle, deg |
59 |
| Maximum Rollback Angle, deg |
46 |
| Digging Depth, in (mm) |
8.3 (210) |
| Overall Height In Carry Position, in (mm) |
70.4 (1780) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
4180 (1900) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
3500 (1590) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
4180 (1900) |
| Breakout force at pivot pin, lbs (kg) |
5588 (2540)4180 (1900) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
4774 (2170) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
5590 (2540) |
| Bucket rollback force at ground level (NSL), lbs (kg) |
4775 (2170) |
| Bucket rollback force at ground level (MSL), lbs (kg) |
5720 (2600) |
