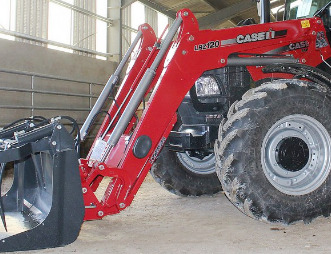

Case IH LRZ 120 Front End Loader

The Case IH LRZ 120 front end loader is designed for Case IH Farmall 105U, 115U, Maxxum 115, 120, 130 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The Case IH LRZ 120 front end loader has a lift capacity (at bucket pin) of 3872 lbs (1760 kg) to a max height of 160.9 in (4070 mm) and breakout force (bucket on ground) of 5060 lbs (2300 kg).

The clearance with a bucket dumped is 119 in (3010 mm) at a maximum dump angle of 59 degrees. The Case IH LRZ120 loader is compatible with the following buckets: a 78" (1980 mm) standard material bucket with a heaped capacity of 0.66 m3 (23.1 cu.ft), and 84" (2130 mm) standard material bucket with a heaped capacity of 0.71 m3 (24.9 cu.ft).

Compatible Tractors
Tractor Models Case IH Farmall 105U, 115U, Maxxum 115, 120, 130
Tractor Power Range, Hp (kW) 90-120 (66-88)
Hydraulic Pressure, bar (psi) 180 (2600)
Hydraulic System Flow, gpm (lpm) 15.0 (57.0)

Loader
Loader Model Case IH LRZ 120
Leveling System Non Self Leveling (NSL) / Mechanical Self Leveling (MSL)
Weight w/o Bucket (NSL), lbs (kg) 1034 (470)
Weight w/o Bucket (MSL), lbs (kg) 1188 (540)

78" Standard Material Bucket
Width, in (mm) 78 (1980)
Struck Capacity, cu.ft (m3) 18.3 (0.52)
Heaped Capacity, cu.ft (m3) 23.1 (0.66)
Weight, lbs (kg) 485 (220)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lbs (kg) 520 (236)

Loader Dimensions
Maximum Lift Height To Bucket Pivot Pin, in (mm) 160.9 (4070)
Maximum Lift Height Under Level Bucket, in (mm) 152.6 (3860)
Clearance With Bucket Dumped, in (mm) 119 (3010)
Reach At Maximum Lift Height, in (mm) 31 (785)
Maximum Dump Angle, deg 59
Maximum Rollback Angle, deg 46
Digging Depth, in (mm) 8.3 (210)
Overall Height In Carry Position, in (mm) 76.3 (1930)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 3872 (1760)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3300 (1500)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3870 (1760)
Breakout force at pivot pin, lbs (kg) 5060 (2300)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 4378 (1990)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 5060 (2300)
Bucket rollback force at ground level (NSL), lbs (kg) 5258 (2390)
Bucket rollback force at ground level (MSL), lbs (kg) 5720 (2600)
