Case IH LRZ 130 Front End Loader

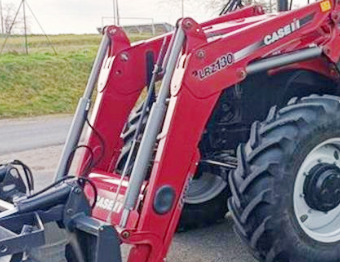

The Case IH LRZ 130 non self leveling or mechanical self leveling loader fits Case IH Maxxum 125, Case IH Puma 130 tractors. The loader has double acting bucket and lift hydraulic cylinders. The Case IH LRZ130 front-end loader has a max lift height of 160.9" (4070 mm) at pin and bucket dump clearance of 119" (3010 mm).

The lift capacity is 4466 lbs (2030 kg) to max height at pin, and boom breakout force is 5810 lbs (2640 kg). The Case IH LRZ 130 loader is equipped with the following buckets: a 84" (2130 mm) standard material bucket with a heaped capacity of 0.71 m3 (24.9 cu.ft), and 96" (2450 mm) standard material bucket with a heaped capacity of 0.82 m3 (28.6 cu.ft).

Compatible Tractors
Tractor Models Case IH Maxxum 125, Case IH Puma 130
Tractor Power Range, Hp (kW) 90-140 (66-103)
Hydraulic Pressure, bar (psi) 180 (2600)
Hydraulic System Flow, gpm (lpm) 15.0 (57.0)

Loader
Loader Model Case IH LRZ 130
Leveling System Non Self Leveling (NSL) / Mechanical Self Leveling (MSL)
Weight w/o Bucket (NSL), lbs (kg) 1078 (490)
Weight w/o Bucket (MSL), lbs (kg) 1210 (550)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lbs (kg) 520 (236)

96" Standard Material Bucket
Width, in (mm) 96 (2450)
Struck Capacity, cu.ft (m3) 22.5 (0.64)
Heaped Capacity, cu.ft (m3) 28.6 (0.82)
Weight, lbs (kg) 580 (264)

Loader Dimensions
Maximum Lift Height To Bucket Pivot Pin, in (mm) 160.9 (4070)
Maximum Lift Height Under Level Bucket, in (mm) 152.6 (3860)
Clearance With Bucket Dumped, in (mm) 119 (3010)
Reach At Maximum Lift Height, in (mm) 31 (785)
Maximum Dump Angle, deg 59
Maximum Rollback Angle, deg 46
Digging Depth, in (mm) 8.3 (210)
Overall Height In Carry Position, in (mm) 76.3 (1930)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 4466 (2030)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3784 (1720)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 4465 (2030)
Breakout force at pivot pin, lbs (kg) 5810 (2640)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 5016 (2280)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 5808 (2640)
Bucket rollback force at ground level (NSL), lbs (kg) 5258 (2390)
Bucket rollback force at ground level (MSL), lbs (kg) 6270 (2850)
