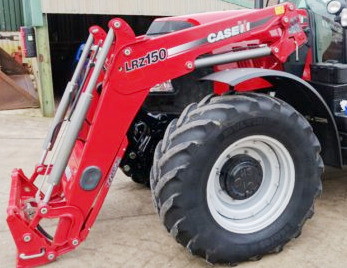

Case IH LRZ 150 Front End Loader
The
Case IH LRZ 150 loader is used for Case IH Maxxum 140, Puma 145, 160 tractors.
The loader hydraulic system includes double-acting bucket and lift hydraulic
cylinders. The Case IH LRZ 150 front end loader has a lifting capacity (at pivot
pin) of 5038 lbs (2290 kg) to maximum height of 168.4" (4260 mm), and bucket's
breakout force of 6380 lbs (2900 kg).
The bucket dump clearance is 126.9" (3210 mm) at maximum dump angle of
59 degrees. The Case IH LRZ150 loader is compatible with a 96" (2450 mm)
standard material bucket with a heaped capacity of 0.82 m3 (28.6 cu.ft),
and 108" (2740 mm) standard material bucket with a rated capacity of
0.92 m3 (32.3 cu.ft).
| Tractor Models |
Case IH Maxxum 140, Puma 145, 160 |
| Tractor Power Range, Hp (kW) |
120-180 (88-132) |
| Hydraulic Pressure, bar (psi) |
190 (2700) |
| Hydraulic System Flow, gpm (lpm) |
20.0 (76.0) |
| Loader Model |
Case IH LRZ 150 |
| Leveling System |
Non Self Leveling (NSL) / Mechanical Self Leveling (MSL) |
| Weight w/o Bucket (NSL), lbs (kg) |
1188 (540) |
| Weight w/o Bucket (MSL), lbs (kg) |
1496 (680) |
| 96" Standard Material Bucket |
| Width, in (mm) |
96 (2450) |
| Struck Capacity, cu.ft (m3) |
22.5 (0.64) |
| Heaped Capacity, cu.ft (m3) |
28.6 (0.82) |
| Weight, lbs (kg) |
580 (264) |
| 108" Standard Material Bucket |
| Width, in (mm) |
108 (2740) |
| Struck Capacity, cu.ft (m3) |
25.3 (0.72) |
| Heaped Capacity, cu.ft (m3) |
32.3 (0.92) |
| Weight, lbs (kg) |
650 (295) |
| Maximum Lift Height To Bucket Pivot Pin, in (mm) |
168.4 (4260) |
| Maximum Lift Height Under Level Bucket, in (mm) |
160.1 (4050) |
| Clearance With Bucket Dumped, in (mm) |
126.9 (3210) |
| Reach At Maximum Lift Height, in (mm) |
31 (785) |
| Maximum Dump Angle, deg |
59 |
| Maximum Rollback Angle, deg |
46 |
| Digging Depth, in (mm) |
8.3 (210) |
| Overall Height In Carry Position, in (mm) |
76.3 (1930) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
5038 (2290) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
4246 (1930) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
5016 (2280) |
| Breakout force at pivot pin, lbs (kg) |
6380 (2900) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
4120 (2460) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
6380 (2900) |
| Bucket rollback force at ground level (NSL), lbs (kg) |
5258 (2390) |
| Bucket rollback force at ground level (MSL), lbs (kg) |
7480 (3400) |
