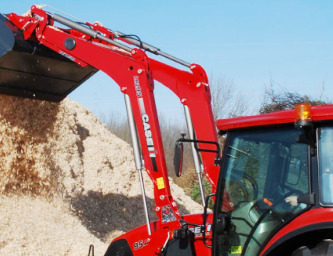

Case IH LRZ 95 Front End Loader
The
Case IH LRZ 95 NSL/MSL loader is compatible with Case IH JX70, JX80, JX95,
Farmall 75C, Quantum 75C tractors. The front end loader has double acting boom
and bucket hydraulic cylinders. The Case IH LRZ95 NSL loader has a lift capacity
(at pivot pin) of 4532 lbs (2060 kg) to a maximum height of 147.8" (3740 mm) and
breakout force of 3388 lbs (1540 kg) with bucket on ground.
A full dump clearance with a 59-degree maximum dump angle is 106.3"
(2690 mm). The Case IH LRZ95 loader is equipped with a 72" (1830 mm)
standard material bucket with a rated capacity of 0.61 m3 (21.3 cu.ft),
and 78" (1980 mm) standard material bucket with a rated capacity of 0.66
m3 (23.1 cu.ft).
| Tractor Models |
Case IH JX70, JX80, JX95, Farmall 75C, Quantum 75C |
| Tractor Power Range, Hp (kW) |
70-100 (51-73) |
| Hydraulic Pressure, bar (psi) |
180 (2600) |
| Hydraulic System Flow, gpm (lpm) |
15.0 (57.0) |
| Loader Model |
Case IH LRZ 95 |
| Leveling System |
Non Self Leveling (NSL) / Mechanical Self Leveling (MSL) |
| Weight w/o Bucket (NSL), lbs (kg) |
924 (420) |
| Weight w/o Bucket (MSL), lbs (kg) |
1023 (465) |
| 72" Standard Material Bucket |
| Width, in (mm) |
72 (1830) |
| Struck Capacity, cu.ft (m3) |
16.9 (0.48) |
| Heaped Capacity, cu.ft (m3) |
21.3 (0.61) |
| Weight, lbs (kg) |
455 (207) |
| 78" Standard Material Bucket |
| Width, in (mm) |
78 (1980) |
| Struck Capacity, cu.ft (m3) |
18.3 (0.52) |
| Heaped Capacity, cu.ft (m3) |
23.1 (0.66) |
| Weight, lbs (kg) |
485 (220) |
| Maximum Lift Height To Bucket Pivot Pin, in (mm) |
147.8 (3740) |
| Maximum Lift Height Under Level Bucket, in (mm) |
139.5 (3530) |
| Clearance With Bucket Dumped, in (mm) |
106.3 (2690) |
| Reach At Maximum Lift Height, in (mm) |
27.7 (700) |
| Maximum Dump Angle, deg |
59 |
| Maximum Rollback Angle, deg |
46 |
| Digging Depth, in (mm) |
8.3 (210) |
| Overall Height In Carry Position, in (mm) |
70.4 (1780) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
3388 (1540) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
2838 (1290) |
| Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
3388 (1540) |
| Breakout force at pivot pin, lbs (kg) |
4532 (2060) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) |
3850 (1750) |
| Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) |
4530 (2060) |
| Bucket rollback force at ground level (NSL), lbs (kg) |
3762 (1710) |
| Bucket rollback force at ground level (MSL), lbs (kg) |
5720 (2600) |
