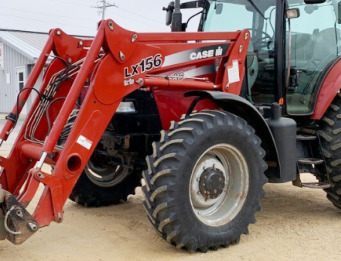

Case IH LX156 Front End Loader

The Case IH LX156 loader is compatible with Case IH MXU100, MXU110, MXU135 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The Case IH LX 156 NSL loader has a lift capacity (at 31.5" forward of pin) of 3500 lbs (1590 kg) to a maximum height of 146" (3710 mm) and breakout force of 4800 lbs (2180 kg) at 31.5" forward of pin. A full dump clearance with a 55-degree maximum dump angle is 109" (2770 mm).

The rated cycle times are 4.6 seconds raising to maximum height, and 3.7 seconds full bucket dumping. The Case IH LX156 loader is equipped with a 72" (1830 mm) standard material bucket with a rated capacity of 0.61 m3 (21.3 cu.ft), and 84" (2130 mm) standard material bucket with a heaped capacity of 0.71 m3 (24.9 cu.ft).

Compatible Tractors
Tractor Models Case IH MXU100, MXU110, MXU135
Front Tires 14.9R28
Rear Tires 18.4R38
Hydraulic System Flow, gpm (lpm) 20.0 (75.7)

Loader
Loader Model Case IH LX156
Leveling System Non Self Leveling (NSL) / Mechanical Self Leveling (MSL)
Weight (NSL), lb (kg) 1500 (680)
Weight (MSL), lb (kg) 1700 (770)

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 520 (236)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 146 (3710)
Maximum lift height under level bucket, in (mm) 134 (3405)
Clearance with bucket dumped, in (mm) 109 (2770)
Reach at maximum lift height, in (mm) 55 (1397)
Reach with bucket on ground level, in (mm) 103 (2615)
Maximum dump angle, degrees 55
Maximum rollback angle, degrees 40
Digging Depth, in (mm) 5 (127)

Operating Data
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3500 (1590)
Lift capacity to maximum height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3800 (1725)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 4800 (2180)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 5300 (2405)

Cycle Times
Raise time to full height, sec 4,6
Lower time, sec 3,1
Bucket dump time, sec 3,7
Bucket rollback time, sec 2,8
