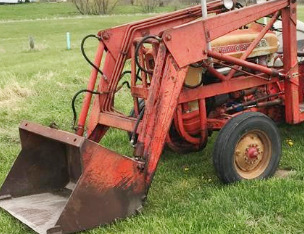

Ford 703 (19-97) Front End Loader

The Ford 703 (19-97) front end loader is compatible with Ford NAA, 8N, and Ford 600/800 series tractors. The front end loader has double acting hydraulic bucket and boom cylinders.

The Ford 703 (19-97) loader has a max lift height of 162" (4100 mm) at pin and bucket dump clearance of 102" (2580 mm).

The lift capacity is 1200 lbs (546 kg) to maximum lift height at pin, and breakout force (bucket on ground) is 2500 lbs (1134 kg).

The raising cycle time is 4.5 sec from ground line to maximum height, and bucket dumping time is 2.5 seconds. The Ford 703 (19-97) loader is equipped with the following buckets: 48", 60", and 73" standard material buckets with nominal heaped capacities of 7.5 cu.ft (0.21 m3), 9.5 cu.ft (0.27 m3), and 20.3 cu.ft (0.58 m3), or 68" and 78" light material buckets with heaped capacities of 16.0 cu.ft (0.46 m3) and 23.1 cu.ft (0.66 m3).

Compatible Tractors
Tractor models Ford NAA, 8N, and Ford 600/800 series
Front tires 6.0x16
Rear tires 10.0x28
Hydraulic system flow, gpm (lpm) 5.0 (19.0)
Hydraulic pressure, bar (psi) 124 (1800)

Loader
Loader model Ford 19-97 (703 series)
Attachment control type Mechanical
Lift cylinder (number and type) Two, Double action
Lift cylinder length (extended/retracted), in (mm) 70.13/40.38 (1775/1022)
Lift cylinder stroke, in (mm) 29.8 (755)
Lift cylinder diameter (piston/rod), in (mm) 2.0/1.38 (51.0/35.0)
Bucket cylinder (number and type) Two, Double action
Bucket cylinder length (extended/retracted), in (mm) 59.5/39.5 (1505/1000)
Bucket cylinder stroke, in (mm) 20.0 (506)
Bucket cylinder diameter (piston/rod), in (mm) 2.0/1,25 (51.0/31.5)
Loader Weight, lbs (kg) 850 (385)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Inside Height, in (mm) 18 (455)
Depth, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,0 (0,17)
Capacity (Heaped), cu.ft (m3) 7,5 (0,21)
Weight, lbs (kg) 230 (105)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Inside Height, in (mm) 18 (455)
Depth, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 7,5 (0,21)
Capacity (Heaped), cu.ft (m3) 9,5 (0,27)
Weight, lbs (kg) 260 (118)


73" Standard Material Bucket
Width, in (mm) 73 (1860)
Inside Height, in (mm) 26.8 (678)
Depth, in (mm) 25.5 (645)
Capacity (Struck), cu.ft (m3) 16.9 (0.48)
Capacity (Heaped), cu.ft (m3) 20.3 (0.58)
Weight, lbs (kg) 365 (165)

68" Light Material Bucket
Width, in (mm) 68 (1720)
Inside Height, in (mm) 25.5 (645)
Depth, in (mm) 21.1 (535)
Capacity (Struck), cu.ft (m3) 13.5 (0.38)
Capacity (Heaped), cu.ft (m3) 16.0 (0.46)
Weight, lbs (kg) 410 (186)

78" Light Material Bucket
Width, in (mm) 78 (1970)
Inside Height, in (mm) 29 (734)
Depth, in (mm) 25 (633)
Capacity (Struck), cu.ft (m3) 18,3 (0,52)
Capacity (Heaped), cu.ft (m3) 23,1 (0,66)
Weight, lbs (kg) 525 (239)

Loader Dimensions
Maximum lift height, in (mm) 162 (4100)
Clearance, bucket dumped, in (mm) 102 (2580)
Reach at maximum lift height with bucket dumped, in (mm) 26 (658)
Maximum dumping angle, degrees 46
Clearance, bucket level, in (mm) 130 (3290)
Maximum digging depth, in (mm) 4 (101)
Height to top of loader post, in (mm) 65 (1645)

Operating Data
Breakaway lift capacity, lbs (kg) 2500 (1134)
Rated load at full lift, lbs (kg) 1000 (455)
Maximum load at full lift, lbs (kg) 1200 (546)

Cycle Times
Raising time, sec 4,5
Lowering time, sec 2,5
Bucket dump time, sec 2,5
Bucket return time, sec 1,5
