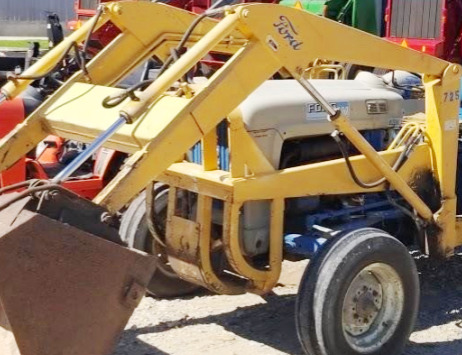

Ford 725 Front End Loader

The Ford 725 front-end loader is used for Ford 2000, 4000 tractors. The loader is equipped with double acting hydraulic bucket and boom cylinders. The loader’s maximum lift height is 124.4" (3147 mm) at pin, and bucket dump clearance is 102" (2580 mm).

The lift capacity is 1600 lbs (730 kg) at full height (pivot pin), and boom breakout force is 2590 lbs (1180 kg). The estimated cycle times are 4.5 seconds raising to full height, and 2.5 seconds maximum bucket dumping.

Compatible buckets for the Ford 725 loader: a 60" (1520 mm) standard material bucket with a heaped capacity of 12 cu.ft (0.34 m3), 68" (1720 mm) standard material bucket with a heaped capacity of 16 cu.ft (0.46 m3), or 72" (1820 mm) light material bucket with a heaped capacity of 20.3 cu.ft (0.58 m3).

Compatible Tractors
Tractor models Ford 2000, 4000
Front tires 6.00x16
Rear tires 13.6x24
Hydraulic system flow, gpm (lpm) 4.0-8.5 (15.2-32.3)
Hydraulic pressure, bar (psi) 110 (1600)

Loader
Loader model Ford 725
Attachment control type Hydraulic/Mechanical
Lift cylinder (number and type) 2, Double action
Lift cylinder length (extended/retracted), in (mm) 76/42.7 (1925/1080)
Lift cylinder stroke, in (mm) 33.3 (843)
Lift cylinder diameter, in (mm) 2/1.5 (50.5/38)
Bucket cylinder (number and type) 2, Double action
Bucket cylinder length (extended/retracted), in (mm) 51.4/31.3 (1300/792)
Bucket cylinder stroke, in (mm) 20.1 (510)
Bucket cylinder diameter, in (mm) 2/1,25 (50.5/31.5)
Weight, lbs (kg) 1000 (455)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Inside Height, in (mm) 25.5 (645)
Depth, in (mm) 20.2 (590)
Capacity (Struck), cu.ft (m3) 10.1 (0.29)
Capacity (Heaped), cu.ft (m3) 12.0 (0.34)
Weight, lbs (kg) 360 (163)


68" Standard Material Bucket
Width, in (mm) 68 (1720)
Inside Height, in (mm) 25.5 (645)
Depth, in (mm) 21.1 (535)
Capacity (Struck), cu.ft (m3) 13.5 (0.38)
Capacity (Heaped), cu.ft (m3) 16.0 (0.46)
Weight, lbs (kg) 410 (186)

72" Light Material Bucket
Width, in (mm) 72 (1820)
Inside Height, in (mm) 26.8 (678)
Depth, in (mm) 25.5 (645)
Capacity (Struck), cu.ft (m3) 16.9 (0.48)
Capacity (Heaped), cu.ft (m3) 20.3 (0.58)
Weight, lbs (kg) 365 (165)

Loader Dimensions
Maximum lift height, in (mm) 124,4 (3147)
Clearance at full height, bucket dumped, in (mm) 102 (2580)
Reach at maximum height, in (mm) 19,5 (495)
Bucket dump angle at full height, degrees 43
Reach at ground, bucket level, in (mm) 66,5 (1683)
Maximum rollback angle, degrees 23
Digging depth, in (mm) 4 (101)
Overall height in carrying position, in (mm) 57 (1442)

Operating Data
Lift capacity to full height at pin 1600 (730)
Breakout force at pin, lbs (kg) 2590 (1180)

Cycle Times
Raising time, sec 4,5
Lowering time, sec 2,2
Bucket dump time, sec 2,5
