Home / Attachments / Ford Front End Loaders / Ford 7308

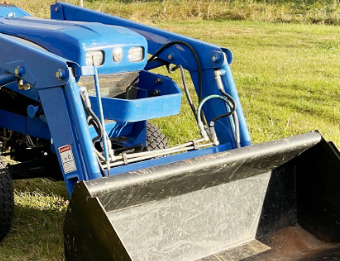

Ford 7308 Front End Loader

The Ford 7308 loader is available for Ford 1720, 1920 tractors. The Ford 7308 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 100.5" (2545 mm) at pin and clearance with bucket dumped is 84" (2125 mm). The lifting capacity is 875 lbs (400 kg) at maximum height (bucket pin), and breakout force is 1602 lbs (730 kg) with bucket on ground.

The raising time is 5 sec from ground line to max height, and bucket rollback time is 3.5 sec. Compatible standard material buckets for the Ford 7308 front-end loader: 48" (1220 mm) bucket with a rated capacity of 0.21 m3 (7.5 cu.ft), 54" (1370 mm) bucket with a rated capacity of 0.24 m3 (8.5 cu.ft), 60" (1520 mm) bucket with a heaped capacity of 0.27 m3 (9.5 cu.ft), and 72" (1820 mm) bucket with a heaped capacity of 0.33 m3 (11.5 cu.ft).

Compatible Tractors
Tractor models Ford 1720, 1920
Front tires 7.00x16
Rear tires 13.6x24
Hydraulic system flow, gpm (lpm) 7.8 (30.0)
Hydraulic pressure, bar (psi) 173 (2500)

Loader
Loader model Ford 7308
Loader type Quick-Attach
Attachment control type Hydraulic
Weight, lbs (kg) 516 (235)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,0 (0,17)
Capacity (Heaped), cu.ft (m3) 7,5 (0,21)
Weight, lbs (kg) 230 (105)

54" Standard Material Bucket
Width, in (mm) 54 (1370)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,7 (0,19)
Capacity (Heaped), cu.ft (m3) 8,5 (0,24)
Weight, lbs (kg) 245 (110)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 7,5 (0,21)
Capacity (Heaped), cu.ft (m3) 9,5 (0,27)
Weight, lbs (kg) 260 (118)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 9,0 (0,26)
Capacity (Heaped), cu.ft (m3) 11,5 (0,33)
Weight, lbs (kg) 290 (132)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 100.5 (2545)
Reach at maximum height, in (mm) 12.8 (325)
Clearance, bucket dumped, in (mm) 84 (2125)
Maximum dumping angle, degrees 38
Maximum digging depth, in (mm) 4 (102)
Rollback angle, degrees 20

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 875 (400)
Breakout force at pivot pin, lbs (kg) 1602 (730)

Cycle Times
Raising time to full height, sec 5,0
Lowering time, sec 3,0
Bucket rollback time, sec 3,5
