Ford 735 Front End Loader
The

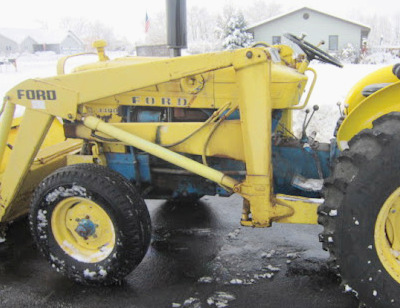

Ford 735 loader is designed to fit Ford 3500, 4400, 4500 tractors. The loader
has double acting boom and bucket hydraulic cylinders. The loader has a maximum
lift height of 126 in (3200 mm) at pin and bucket dump clearance of 102 in (2590
mm).
The lift capacity is rated at 2500 lbs (1134 kg) to full height, and
bucket's breakout force is 3770 lbs (1710 kg). The rated cycle times are
4.8 seconds lifting to maximum height, and 3.1 seconds full bucket
rollback.
The Ford 735 front-end loader is equipped with the following buckets: a
62" (1580 mm) standard material bucket with a heaped capacity of 15
cu.ft (0.43 m3), 68" (1720 mm) standard material bucket with a heaped
capacity of 16 cu.ft (0.46 m3), 72" (1820 mm) standard material bucket
with a heaped capacity of 20.3 cu.ft (0.58 m3), or 78" (1970 mm)
standard material bucket with a heaped capacity of 23.1 cu.ft (0.66 m3).
| Tractor models |
Ford 3500, 4400, 4500 |
| Front tires |
6.00x16 |
| Rear tires |
14.9x24 |
| Hydraulic system flow, gpm (lpm) |
5.0 (19.0) |
| Hydraulic pressure, bar (psi) |
174 (2500) |
| Loader model |
Ford 735 |
| Attachment control type |
Hydraulic |
| Lift cylinder (number and type) |
Two, Double action |
| Lift cylinder length (extended/retracted), in (mm) |
78.5/46.6 (1985/1180) |
| Lift cylinder stroke, in (mm) |
31.9 (810) |
| Lift cylinder diameter, in (mm) |
2.4/1.6 (60.0/40.5) |
| Bucket cylinder (number and type) |
Two, Double action |
| Bucket cylinder length (extended/retracted), in (mm) |
53.4/33.7 (1350/850) |
| Bucket cylinder stroke, in (mm) |
19.8 (500) |
| Bucket cylinder diameter, in (mm) |
2.4/1,25 (60.0/31.5) |
| Weight, lbs (kg) |
1495 (680) |
| 62" Standard Material Bucket |
| Width, in (mm) |
62 (1580) |
| Inside Height, in (mm) |
25.5 (645) |
| Depth, in (mm) |
23.3 (590) |
| Capacity (Struck), cu.ft (m3) |
13.6 (0.39) |
| Capacity (Heaped), cu.ft (m3) |
15.0 (0.43) |
| Weight, lbs (kg) |
360 (163) |
| 68" Standard Material Bucket |
| Width, in (mm) |
68 (1720) |
| Inside Height, in (mm) |
25.5 (645) |
| Depth, in (mm) |
21.1 (535) |
| Capacity (Struck), cu.ft (m3) |
13.5 (0.38) |
| Capacity (Heaped), cu.ft (m3) |
16.0 (0.46) |
| Weight, lbs (kg) |
410 (186) |
| 72" Standard Material Bucket |
| Width, in (mm) |
72 (1830) |
| Inside Height, in (mm) |
26.8 (678) |
| Depth, in (mm) |
25.5 (645) |
| Capacity (Struck), cu.ft (m3) |
16.9 (0.48) |
| Capacity (Heaped), cu.ft (m3) |
20.3 (0.58) |
| Weight, lbs (kg) |
365 (165) |
| 78" Standard Material Bucket |
| Width, in (mm) |
78 (1970) |
| Inside Height, in (mm) |
29 (734) |
| Depth, in (mm) |
25 (633) |
| Capacity (Struck), cu.ft (m3) |
18,3 (0,52) |
| Capacity (Heaped), cu.ft (m3) |
23,1 (0,66) |
| Weight, lbs (kg) |
525 (239) |
| Maximum lift height at pivot pin, in (mm) |
126 (3200) |
| Reach at maximum height, in (mm) |
25 (630) |
| Clearance, bucket dumped, in (mm) |
102 (2590) |
| Maximum dumping angle, degrees |
45 |
| Reach, bucket on ground, in (mm) |
73 (1850) |
| Rollback angle, degrees |
22 |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
2500 (1134) |
| Breakout force at pivot pin, lbs (kg) |
3770 (1710) |
| Raising time to full height, sec |
4,8 |
| Lowering time, sec |
2,3 |
| Bucket rollback time, sec |
3,1 |
