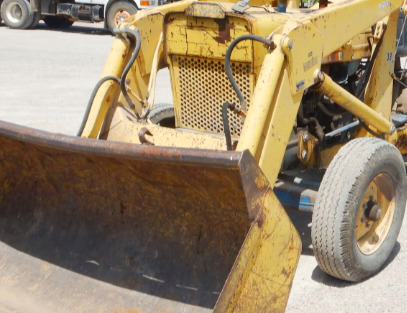

Ford 740 Front End Loader

The Ford 740 loader is used for Ford 4500 industrial tractor. The loader is equipped with double acting bucket and lift hydraulic cylinders. The loader has a lift capacity (at pin) of 3750 lbs (1700 kg) to a 129" (3265 mm) max height and boom breakout force of 6000 lbs (2730 mm).

The bucket dump clearance is 104.5" (2644 mm) at max dump angle of 42 degrees. The raising time is 5.5 seconds from ground line to maximum height, and bucket dumping time is 3.7 seconds.

The Ford 740 front-end loader is compatible with a 72" (1820 mm) standard material bucket with a heaped capacity of 27 cu.ft (0.77 m3), or 86" (2180 mm) light material bucket with a heaped capacity of 30.5 cu.ft (0.87 m3).

Compatible Tractors
Tractor Model Ford 4500
Front Tires 7.50x16
Rear Tires 16.9x24
Pump Flow, gpm (lpm) 21.3 (81.0)
Hydraulic Pressure, bar (psi) 110 (1600)

Loader
Loader Model Ford 740
Pivot Pin Diameter, in (mm) 2.0 (50.6)
Lift Cylinder Type Double-Acting
Lift Cylinder Extended Length (max), in (mm) 83 (2100)
Lift Cylinder Retracted Length (min), in (mm) 47 (1190)
Lift Cylinder Stroke, in (mm) 36 (910)
Lift Cylinder Diameter, in (mm) 2.0 (51) / 3.0 (76)
Bucket Cylinder Type Double-Acting
Bucket Cylinder Extended Length (max), in (mm) 58.8 (1490)
Bucket Cylinder Retracted Length (min), in (mm) 36.1 (915)
Bucket Cylinder Stroke, in (mm) 22.6 (570)
Bucket Cylinder Piston Diameter, in (mm) 3.0 (76)
Bucket Cylinder Rod Diameter, in (mm) 1.5 (38)
Shipping Weight (w/o bucket), lbs (kg) 800 (365)


Standard Material Bucket
Outside Width, in (mm) 71.5 (1810)
Length Lip to Pin, in (mm) 33.6 (850)
Struck Capacity, cu.ft (m3) 25.3 (0.72)
Heaped Capacity, cu.ft (m3) 27.0 (0.77)
Weight, lbs (kg) 630 (286)

Light Material Bucket
Outside Width, in (mm) 85.5 (2160)
Length Lip to Pin, in (mm) 35.3 (895)
Struck Capacity, cu.ft (m3) 27.8 (0.79)
Heaped Capacity, cu.ft (m3) 30.5 (0.87)
Weight, lbs (kg) 560 (254)

Loader Dimensions
Maximum Lift Height, Measured at Pivot Pin, in (mm) 129 (3265)
Clearance at Full Height, Bucket Dumped, in (mm) 104.5 (2644)
Reach at Maximum Height, in (mm) 26.5 (670)
Maximum Dump Angle, degrees 42
Reach at Ground, Bucket Level, in (mm) 75 (1898)
Maximum Rollback Angle, degrees 30
Digging Depth, in (mm) 4 (101)
Overall Height in Carrying Position, in (mm) 61 (1543)

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 3750 (1700)
Lift Capacity to Maximum Height at 19.5" (0.5m) Forward of Pivot Pin, lbs (kg) 2600 (1180)
Breakout Force at Pivot Pin, lbs (kg) 6000 (2730)

Cycle Times
Raising Time to Full Height, seconds 5.5
Lowering Time, seconds 3.4
Bucket Dumping Time, seconds 3.7
Bucket Rollback Time, seconds 3.0
